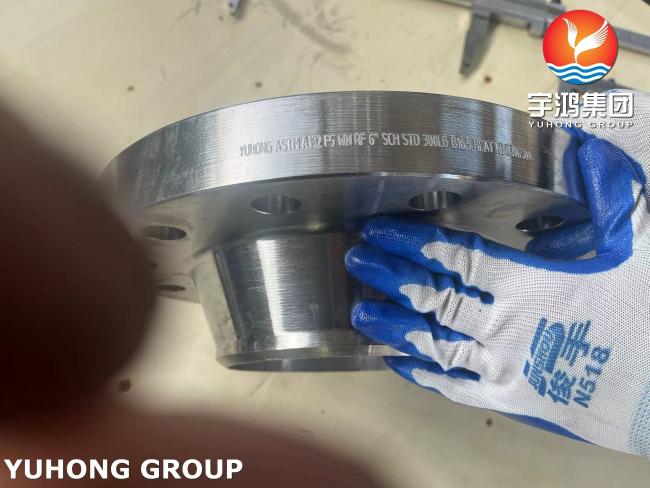

ASTM A182 F5 Alloy Steel Flange ASME B16.5 Forged Orifice Weld Neck Flange
ASTM A182 F5 Alloy Steel Orifice Flange Forged WNRF Flange for Industries
An orifice flange is commonly used to measure the flow of fluids. The flange features a couple of bolt holes for attachment to a pipe or another flange. It is also machined to accept an orifice plate, which is used to restrict flow and create a pressure drop that can be measured. This type of flange facilitates flow measurement via an orifice plate, which creates a pressure differential for flow rate calculation. Includes pressure tapings (upstream/downstream) and jack screws for plate installation. Weld neck means the flange has a long tapered hub that can be welded to a pipe, which is good for high-pressure/temperature applications.
ASTM A182 F5 Alloy Steel Flange Chemical Composition
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A182 F5 | 0.15 | 0.3 – 0.6 | 0.5 | 0.03 | 0.03 | 4 – 6 | 0.044 – 0.65 |
ASTM A182 F5 Alloy Steel Flange Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A182 F5 | 275 | 485 | 20 |
Detailed Manufacturing Process
-
Forging: Heated to ~1200°C (2192°F), shaped via closed-die forging for grain refinement.
-
Heat Treatment:
-
Normalizing: Heated to 900–950°C (1652–1742°F), air-cooled to refine microstructure.
-
Tempering: Reheated to 650–700°C (1202–1292°F), then air-cooled to relieve stresses and enhance toughness.
-
-
Machining: CNC-machined to ASME B16.5 tolerances (e.g., bore diameter ±0.8 mm, face flatness <0.2 mm).
-
Surface Finish: Raised face (RF) serrations (125–250 µin RMS) for optimal gasket sealing.
Flanges Grades
Stainless Steel Flange: F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F317L, F347, F347H, F904L etc
Duplex Steel Flange: UNS S31803, 2205, S31254 (254SMO)
Super Duplex Steel Flange : UNS S32750, UNS S32760, UNS S32304, S31500
Carbon Steel Flange: ASTM A105, A105N etc.
Alloy Steel Flange: F1, F11, F22, F5, F9, F91 etc.
Nickel Alloy Flange as below
Monel 400 & K500,
Inconel 600, 601, 617, 625, 690, 718, X-750.
Incolloy 800, 800H, 800HT, 825, 925.
Hastelloy C22, C4, C276, S, C2000, G-30, G-35, X, N, B, B-2, B-3.
Copper Alloys Flanges: Copper, Brass & Gunmetal
Industry-Specific Applications
-
Oil & Gas: Metering crude oil in high-pressure pipelines (e.g., API 14.3/AGA-3 standards).
-
Power Generation: Steam flow measurement in turbines (ASME PTC 6 compliant).
-
Petrochemical: Ethylene/cracker unit feed lines (resists hydrogen embrittlement).
-
Nuclear: Auxiliary cooling systems (ASTM A182 F5 is not for primary loops but used in secondary circuits).
