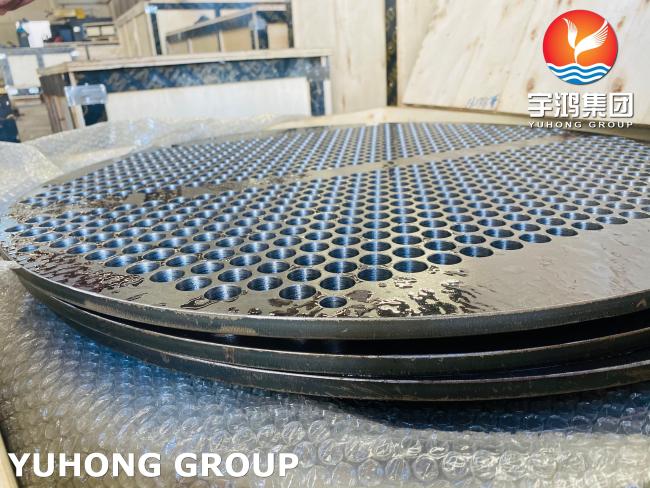

Tube sheet is a plate used to support the tubes in shell and tube heat exchangers. The tubes are arranged in parallel and are supported and held in place by the tube sheet. The tube sheet is a circular plate with holes perforated on it so that the tubes can pass through the openings.

Tube sheet is a flat plate with holes drilled on it that is used to support and hold the tubes inside a shell and tube heat exchanger. It separates the two fluids that need to be heated or cooled from each other. One fluid flows through the tubes and the other flows on the outside (shell side).

Its main function is to provide structural integrity and hold the tubes in place, ensuring that there is no mixing between the two fluids. The main purpose is to direct the shell side fluid flow through the tubes multiple times, increase the heat transfer efficiency by increasing turbulence, and reduce dead zones where heat transfer is minimal. It is essential for holding the tubes in place and preventing mixing of the fluids.

Application

Cooling systems in refineries.
Condensers in power plants.
Process heating/cooling in chemical reactors.
Oil & Gas
Reactors and condensers handling sulfuric/nitric acids.
Ethylene cracking furnaces.
Steam condensers in thermal/nuclear power plants.
Feedwater heaters and turbine bypass systems.
Sterilizers and clean steam systems.
