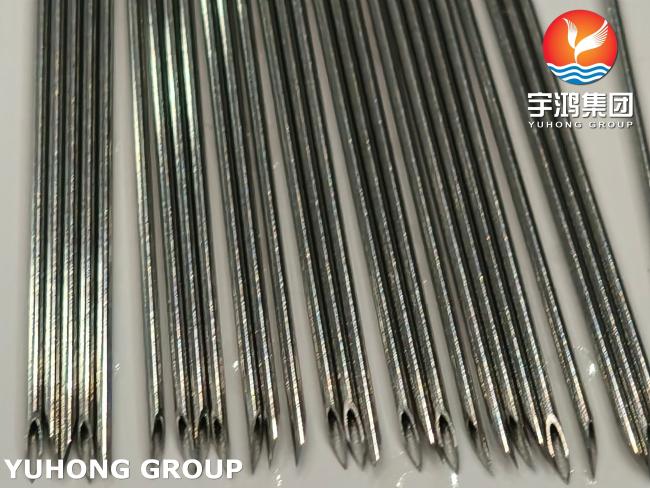

ISO7864 SUS304 Medical Injection Stainless Steel Needle Tube , 21G 44MM , Bevelled Tip

ISO9626 SUS304 Medical Injection Stainless Steel Needle Tube , 21G 0.8*44MM , Bevelled Tip

What is the injection?

The injection is a way of administering a liquid medication into the body tissues under the skin, which usually use a sterile, sharp and hollow needle tube, that is, injection needle. Injection is generally used for medication which need to have quick effect or which are not absorbed well in the body’s digestive system. Injection Needle Tubes are the most common medical needle tubes in our daily life. This kind of medical needle tubes are usually produced by medical grade stainless steel 304 grades due to their resistance to corrosion and durability. There are many types of injection needle tubes, such as hypodermic needles, insulin needles, spinal Needle, epidural needle and so on. In addition to normal standard sizes, we can also customize needle tubes that are based on clients' drawings. Our semi-finished stainless steel needle tubes are all passed the strict quality inspection. There will be several inpections during the process of manufacturing. Our quality assurance system is certificated by ISO13485 international standard. If the client has demand of medical capillary tubes, we can also provide stainless steel capillary tubes according to ISO 9626 standard.

Common Sizes:

1.Gauge (G): Ranges from 10G (thick, IV/blood donation) to 34G (ultra-thin). Lower gauge means thicker needle.

2.Length: Varies by use:

Subcutaneous Injection: 1/2–5/8 inch (12–16 mm).

Intramuscular Injection: 1–3 inches (25–75 mm).

Intradermal Injection: 1/4–1/2 inch (6–12 mm).

Injection Needle Types:

• Hypodermic Injection: Standard for injections (subcutaneous, intramuscular, intravenous).
• Insulin Injection: Ultra-fine (28-31G), short (4-8 mm), for diabetes management.
• Tuberculin Injection: Thin (26-27G), used for TB tests or small doses.
• Spinal / Epidural Injection: Long (3-5 inches), large gauge (22-25G), for cerebrospinal fluid access.

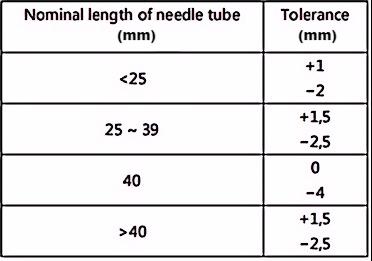

Needle Tube Length Tolerance:

Applications:

• Medication / vaccine delivery, blood collection, insulin administration, anesthesia.
• Specialty uses: Allergy testing, dermatology (intradermal).
