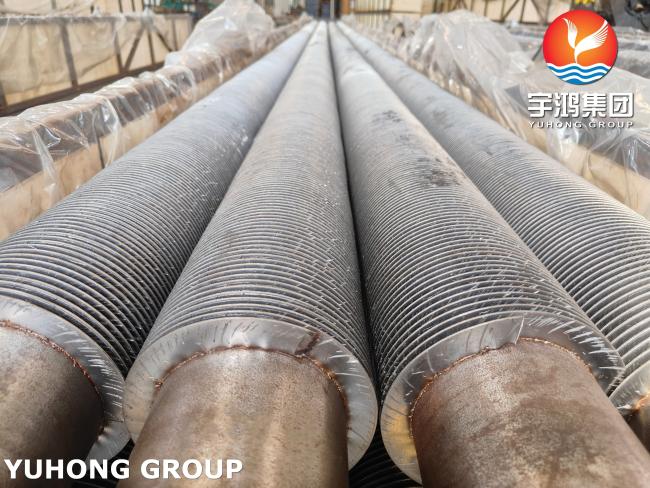

ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR HFW Fin Tube For Convection Coil
ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR, HFW Fin Tube, For Convection Coil
1. Product Overview
The ASTM A335 P22 Alloy Steel Seamless Tube with 11-13% Chromium (Cr) HFW Fin Tube is engineered for high-efficiency heat transfer in extreme temperature and pressure environments. Combining the high-temperature strength of P22 alloy steel with the corrosion resistance of chromium-rich fins, this product is ideal for convection coils in boilers, heaters, and industrial thermal systems.
2. Material Standards & Chemical Composition
Base Tube: ASTM A335 P22 Alloy Steel
| Element | Composition (wt%) | Standard Requirements |
|---|---|---|
| Carbon (C) | 0.05–0.15 | ASTM A335 |
| Chromium (Cr) | 1.90–2.60 | |
| Molybdenum (Mo) | 0.87–1.13 | |
| Manganese (Mn) | 0.30–0.60 | |
| Silicon (Si) | 0.50 max | |
| Phosphorus (P) | 0.025 max | |
| Sulfur (S) | 0.025 max |
Fin Strip: 11-13% Chromium Steel
| Element | Composition (wt%) | Key Role |
|---|---|---|
| Chromium (Cr) | 11.00–13.00 | Enhances oxidation & corrosion resistance |
| Carbon (C) | 0.08–0.15 | Balances strength & weldability |
| Nickel (Ni) | ≤0.50 | Improves toughness |
| Manganese (Mn) | 0.30–0.60 | Supports hardenability |
3. Mechanical Properties
| Parameter | ASTM A335 P22 Base Tube | 11-13Cr Fin Strip |
|---|---|---|
| Tensile Strength (MPa) | ≥415 | 450–600 |
| Yield Strength (MPa) | ≥205 | ≥250 |
| Elongation (% in 50 mm) | ≥30 | ≥20 |
| Hardness (HBW) | ≤187 | ≤230 |
| Max Operating Temperature (°C) | 650 | 550 (continuous service) |
4. Key Advantages
-
High-Temperature Durability
-
P22 alloy steel withstands temperatures up to 650°C with superior creep resistance, ideal for superheaters and reformers.
-
Chromium fins resist oxidation in flue gas and acidic environments.
-
-
Corrosion & Sulfidation Resistance
-
11-13Cr fins prevent sulfidation cracking in sulfur-rich atmospheres (e.g., refinery heaters).
-
-
Optimized Heat Transfer
-
HFW fins increase heat exchange surface area by 4–6x, enhancing efficiency while maintaining low pressure drop.
-
-
Robust Welding Quality
-
High-frequency welding ensures fin-to-tube bond strength ≥85% of base metal, validated by shear testing.
-
-
Cost-Effective Solution
-
Combines the high-temperature performance of P22 with the corrosion resistance of Cr steel, reducing downtime and maintenance costs.
-
5. Manufacturing & Quality Control
-
Base Tube Production
-
Seamless manufacturing via hot extrusion or rotary piercing, compliant with ASTM A335.
-
Heat treatment: Normalized at 900–940°C, tempered at 690–730°C for optimal microstructure.
-
-
Fin Welding Process
-
HFW fin attachment: Welding speed 8–25 m/min, frequency 200–450 kHz.
-
Post-weld stress relief (PWHT) at 600–650°C to eliminate residual stresses.
-
-
Testing & Certification
-
Non-Destructive Testing (NDT): 100% UT/RT on base tube; PT/MT on welds.
-
Hydrostatic Testing: 1.5x design pressure (ASME B31.1 compliant).
-
Certificates: ASME Section II, EN 10204 3.1, and PED 2014/68/EU.
-
6. Applications
| Industry | Use Cases |
|---|---|
| Power Generation | Boiler convection sections, superheaters, and economizers in coal/gas plants. |
| Petrochemical | Cracking furnaces, hydroprocessing heaters, and sulfur recovery units. |
| Industrial Heating | Thermal fluid heaters, waste heat recovery coils, and process air preheaters. |
| Chemical Processing | High-temperature reactors and reformer tubes in ammonia/methanol plants. |
7. Comparison with Alternatives
| Feature | ASTM A335 P22 + 11-13Cr HFW Fin Tube | Carbon Steel Fin Tube | Stainless Steel 321 Fin Tube |
|---|---|---|---|
| Max Temperature (°C) | 650 | 400 | 850 |
| Sulfidation Resistance | Excellent (Cr-enhanced) | Poor | Moderate |
| Cost | Moderate | Low | High |
| Typical Lifespan | 12–18 years | 5–8 years | 15–25 years |
