High Frequency Welded Finned Tube ASTM A106 Gr B For Power Station Boilers
High Frequency Welded Finned Tube ASTM A106 Gr. B For Power Station Boilers

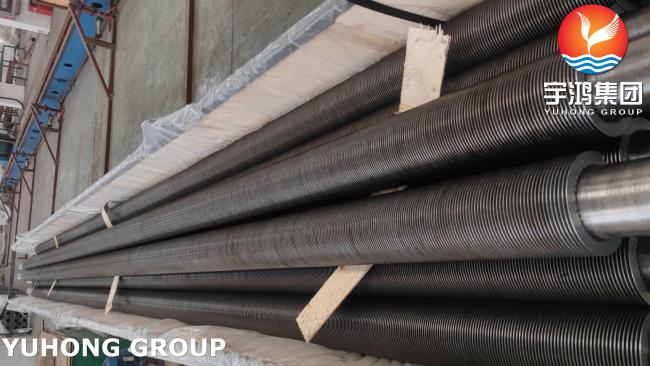

High-frequency welded spiral finned tubes are formed by welding the base tube and the rotating strip-shaped fins on the tube surface using the high-frequency welding process. Due to their high production efficiency and excellent heat transfer performance, they are widely used and are one of the most widely applied finned tubes at present.
Suitable for use in high-temperature environments with corrosive substances and where there is a tendency for dust to accumulate.The weldable materials include carbon steel, low-carbon steel and stainless steel.
A106 Gr.B Chemical Composition max %
| Grade | C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| Gr B | 0.3 | 0.29-1.06 | 0.035 | 0.35 | 0.1 | 0.4 | 0.4 | 0.15 | 0.4 | 0.08 |
A106 Gr.B Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation |
| Gr B | ksi-66,MPa-415 | psi-35,MPa-240 | 0.3 |
Applications
It is mainly applied in finned tube economizers of power station boilers, heating boilers, industrial boilers, heat pipe air preheaters, waste heat boilers, as well as waste heat recovery systems of steel, petrochemical, chemical industries and various industrial furnaces.
Specifications For Various Types Of Finned Tubes That We Can Offer
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
Welcome yours' consults about finned tubes to our YUHONG Group!
