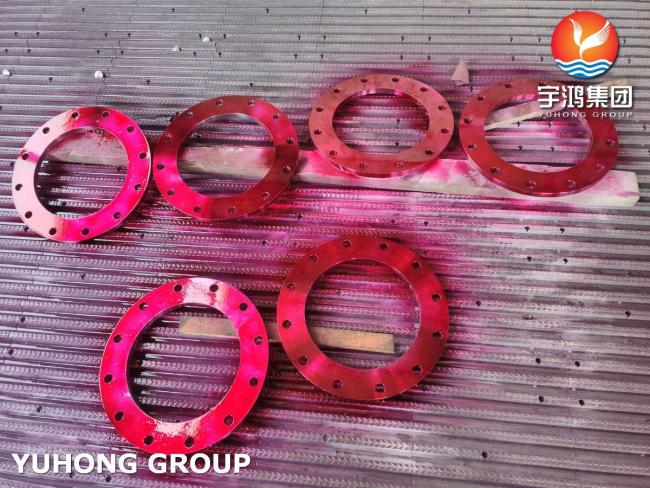

ASME SA182 F904L Stainless Steel Slip On RF Flanges B16.5
ASME SA182 F904L Stainless Steel Slip On RF Flanges are high-performance flanges designed for use in various industrial applications requiring excellent corrosion resistance and mechanical strength. These flanges conform to the ASME B16.5 standard, ensuring compatibility with pipe sizes and pressure ratings commonly used in piping systems.
Material Equivalent:
| STANDARD | UNS | WERKSTOFF NR. | EN | AFNOR | BS | JIS | KS |
| F904L | N08904 | 1.4539 | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | 904S13 | SUS 890L | STS 317J5L |
| Specification | ASTM A182 F904L SS Flange |
| Supporting Flange Material | Ring Joint, Flange Bolts, Gasket |
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Production Process | Forged, Heat Treated and Machined |
| Coating Flange Faces | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Standards | ASME B16.38 Flange, EN-1092 Flange, BS10 Flange, DIN Flange, PN Flange, ASME B16.47 (Series A, Series B) Flange, JIS Flange, ISO Flange, GOST Flange, UNI Flange, AWWA Flange, MSS SP44 Flange, ASME B16.5 Flange |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Connect Type | LMF Flange, SMF Flange, LJF Flange, RF Flange, FF Flange, RTJ Flange |
Chemical Composition:
| Grade | % | C | Mn | Si | P | S | Cr | MO | Ni | Cu |
| F904L | Min | - | - | - | - | - | 19 | 4 | 23 | 1 |
| max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Key Features:
-
Material:
- Made from 904L Stainless Steel, a super austenitic stainless steel with low carbon content.
- Exhibits exceptional resistance to corrosion, especially in harsh environments like acidic or chloride-rich conditions.
-
Slip-On Design:
- The slip-on flange type is easy to install and weld to the pipe.
- Ideal for low-pressure and temperature applications.
-
Raised Face (RF):
- The raised face design enhances the sealing performance when used with gaskets.
- Suitable for medium to high-pressure applications requiring reliable sealing.
-
ASME B16.5 Compliance:
- Adheres to the ASME B16.5 standard, ensuring precise dimensions and pressure-temperature ratings.
- Available in various pressure classes (e.g., 150#, 300#, etc.) and sizes.
-
Corrosion Resistance:
- Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking.
- Perfect for use in chemical processing, seawater environments, and other aggressive conditions.
Applications:
- Chemical Processing: Widely used in equipment exposed to strong acids, such as sulfuric acid and phosphoric acid.
- Marine Applications: Ideal for seawater cooling and desalination systems.
- Oil & Gas: Suitable for pipelines, heat exchangers, and offshore platforms.
- Pulp and Paper Industry: Handles corrosive chemicals and high mechanical loads effectively.
Benefits:
- Long service life due to superior corrosion resistance.
- High mechanical strength and durability.
- Easy installation and maintenance with slip-on and raised face design.
- Ensures safety and reliability in demanding environments.
