Medical Stainless Steel Bevelled Hypodermic Needle Tube For Medicine Delivery SUS304

Medical Stainless Steel Bevelled Hypodermic Needle Tube For Medicine Delivery SUS304

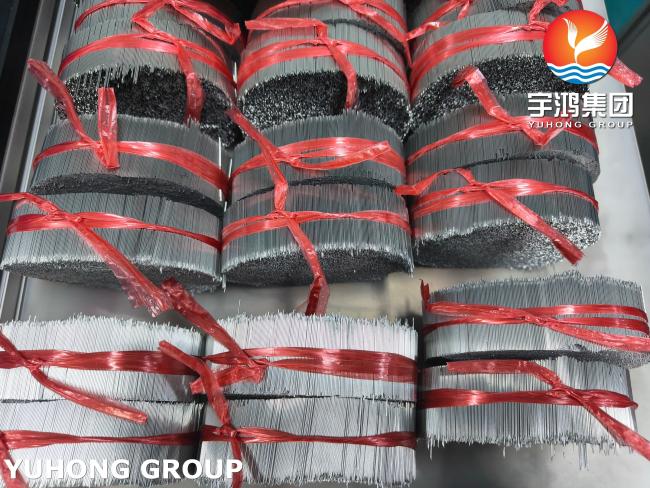

Medical hypodermic needle tubes are one of the typical injection needle tubes, which are normally made from medical grade stainless steel 304 material. The hypodermic needle tube is designed with a sharp, angled cut (bevel), typically thriple-bevel, at one end to facilitate the skin penetration and it is designed for assembly into final hypodermic needles used for medicine delivery, aspiration, or other medical fluid transfer procedures. Hypodermic needle tubes are most commonly applied for blood administration, transfusions, vaccinations and fast delivery of other fluid medication into the people's body. These medical needle tubes are produced by high-precision welding, cold drawing, annealing, and grinding processes to achieve strict dimensional tolerances, surface finish, and mechanical properties. And they're manufactured according to ISO9626 international standard. The diameter size of hypodermic needle tubes ranges typically from 14G to 34G. Most common medicine delivery gauges are from 18G to 27G. The length can be customizable, and our standard lengths of hypodermic needle tubes for assembly are generally 15mm, 20mm, 25mm, 30mm, or longer for specific applications, such as spinal needle tubes.

Key Features:

• Excellent Corrosion Resistance
• High Strength And Ductility
• Good Formability
• Precision Bevel Sharpness To Minimize Insertion Force And Patient Discomfort
• Burr-Free
• Exceptional Surface Finish To Minimize Fluid Drag And Medicine Adsorption.
• Rigorous Quality Control

Applications:

• Subcutaneous Injection
• Intramuscular Injection
• Intravenous Injection
• Intradermal Injection
• Infusion Set
• Catheter Introducer
• Dental Anesthesia Needle
• Ophthalmic Procedure
• Orthodontics
• Veterinary Science
• Food And Drink Manufacturing
• Electronic Manufacturing
• Chemical Industries.
