Carbon Steel ASTM A179 G Type Embedded Fin Tube For Air Cooler
Carbon Steel Fin Tube ASTM A179 G Type, Embedded Fin Tube, For Air Cooler
Introduction

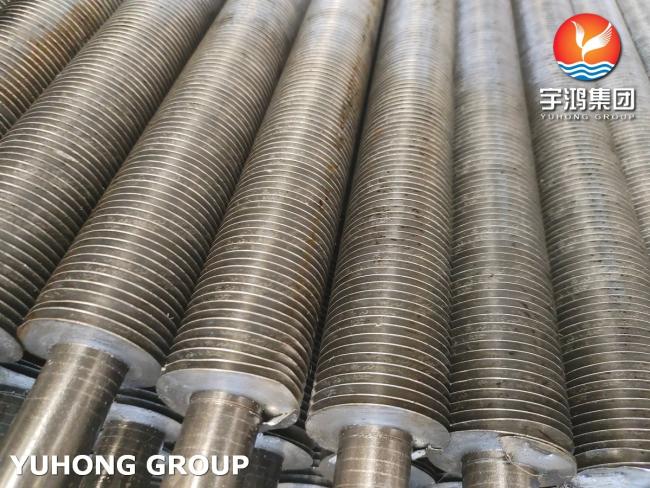

This G-Type Embedded Fin Tube is manufactured with a carbon steel seamless tube (ASTM A179) as the base and high-purity aluminum strip (Al1060) as the fin material. The G-type design features fins mechanically embedded into a groove cut in the base tube, offering superior mechanical bonding and enhanced heat transfer efficiency. It is ideal for air-cooled heat exchangers used in demanding industrial applications.
Chemical Composition
Base Tube – ASTM A179 (Carbon Steel)
| Element | C (max) | Mn | P (max) | S (max) |
|---|---|---|---|---|
| Content (%) | 0.06–0.18 | 0.27–0.63 | 0.035 | 0.035 |
Fin – Al1060 (Aluminum Strip)
| Element | Al (%) | Si (%) | Fe (%) | Cu (%) | Zn (%) |
|---|---|---|---|---|---|
| Content | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.05 |
Mechanical Properties
ASTM A179 Base Tube
| Property | Value |
|---|---|
| Tensile Strength | ≥325 MPa |
| Yield Strength | ≥180 MPa |
| Elongation | ≥35% |
| Hardness | ≤72 HBW |
Advantages
-
Strong Fin Bonding: The G-type embedding method ensures fins are mechanically locked, preventing loosening under vibration or thermal cycling.
-
Excellent Heat Transfer: Increased surface area significantly boosts air-side heat exchange efficiency.
-
Corrosion Resistance: Aluminum fins protect against atmospheric corrosion, prolonging service life.
-
Long Lifespan: Ideal for high-dust and high-temperature environments like refineries or petrochemical plants.
-
Maintenance-Friendly: Fin integrity remains stable over long operation periods.
Applications
-
Air Coolers in:
-
Petrochemical Plants
-
Oil Refineries
-
Power Generation Facilities
-
Offshore Platforms
-
Gas Processing Plants
-
