ASTM B564 Alloy600 UNS NO6600 Nickel Alloy Blind RF Face Flange Forging

ASTM B564 Alloy600 UNS NO6600 Nickel Alloy Blind RF Face Flange

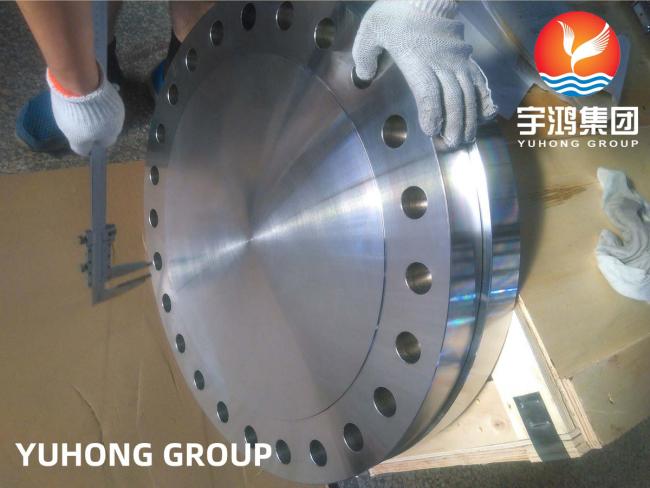

The ASTM B564 Alloy 600 Blind RF Flange is a high-performance nickel-chromium alloy component designed for use in extreme environments. Manufactured according to the ASTM B564 standard, this blind flange is made from Alloy 600 (UNS N06600), a material known for its excellent resistance to high temperatures, oxidation, and corrosive environments.

Key Features:

• Material Composition:

  • Nickel (minimum 72%), Chromium (14-17%), and Iron (6-10%).
  • Includes small amounts of manganese, silicon, carbon, and sulfur.

• Corrosion Resistance:

  • Resistant to oxidation and scaling at high temperatures.
  • Performs well in harsh environments, including chemical, marine, and acidic applications.

• Temperature Resistance:

  • Excellent resistance to high-temperature oxidation up to 2000°F (1093°C).
  • Maintains strength and stability under extreme thermal conditions.

• Design:

  • Blind Flange: Designed to close off or seal pipe systems.
  • Raised Face (RF): Provides a sealing surface for improved pressure and leak resistance.

• Specifications:

  • Standard: ASTM B564.
  • Material Grade: Alloy 600 / UNS N06600.
  • Available sizes: Customizable depending on project requirements.

Advantages of Alloy600 Flanges:

• High mechanical strength.
• Superior weldability and formability.
• Long service life in extreme environments.

Applications:

• Chemical Processing: Handles acidic and alkaline environments.
• Aerospace: Used in engine components and thermal control systems.
• Power Generation: Ideal for heat exchangers and boiler components.
• Marine Industry: Resists saltwater corrosion.

Alloy600 Chemical Composition
