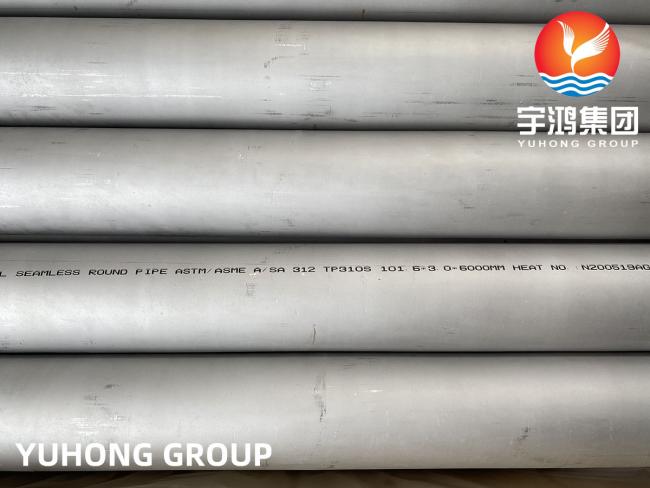

ASTM A312 TP310S Stainless Steel Seamless Pipe For Oil and Gas
ASTM A312 TP310S is a high-alloy austenitic stainless steel pipe designed for high-temperature and corrosion-resistant applications. It is a seamless pipe manufactured under the ASTM A312 standard, which specifies seamless, straight-seam, or welded stainless steel pipes for high-temperature and general corrosion service.
Key Features:
- Material Grade: TP310S (UNS S31008)
- Chemical Composition: High chromium (24-26%) and nickel (19-22%) content, providing excellent resistance to oxidation and corrosion at elevated temperatures.
- Heat Resistance: Exceptional resistance to oxidation up to 1100°C (2012°F) in continuous service and 1035°C (1895°F) in intermittent service.
- Corrosion Resistance: Superior resistance to intergranular corrosion, pitting, and stress corrosion cracking, even in harsh environments.
- Mechanical Properties:
- Tensile Strength: ≥515 MPa (minimum)
- Yield Strength: ≥205 MPa (minimum)
- Elongation: ≥35%
- Seamless Design: Ensures uniform strength, reliability, and leak-free performance, especially under high-pressure conditions.
- Applications: High-temperature environments such as heat exchangers, furnace components, chemical process equipment, and power generation.
Below is a detailed table summarizing the thermal, physical, and mechanical properties of ASTM A213 TP310S:
| Property Type | Property | Value | Significance |
|---|---|---|---|
| Thermal Properties | Thermal Conductivity | 14.2 W/m·K (20°C), 19 W/m·K (500°C) | Moderate conductivity for high-temp stability. |
| Coefficient of Thermal Expansion | 16.1 × 10⁻⁶ /°C (20–1000°C) | Low expansion reduces thermal distortion. | |
| Specific Heat Capacity | 500 J/kg·K (20°C) | Efficient heat absorption. | |
| Melting Point | 1400–1450°C | Stable at extreme heat. | |
| Oxidation Resistance | Continuous: 1100°C; Intermittent: 1035°C | Excellent performance in oxidizing atmospheres. | |
| Physical Properties | Density | 7.9 g/cm³ | High strength-to-weight ratio. |
| Modulus of Elasticity | 200 GPa | High rigidity for dimensional stability under load. | |
| Electrical Resistivity | 0.78 μΩ·m (20°C) | Good resistivity for high-temperature electrical systems. | |
| Magnetic Permeability | Non-magnetic (annealed condition) | Suitable for non-magnetic applications. | |
| Mechanical Properties | Tensile Strength | 515 MPa (min), 735 MPa (max) | High durability in high-stress conditions. |
| Yield Strength (0.2% offset) | 205 MPa (min) | Resists deformation under load. | |
| Elongation | 35% (min) | High ductility for forming and shaping. | |
| Hardness | 217 HBW, 95 HRB | Balances wear resistance and machinability. | |
| Creep Strength | Excellent at elevated temperatures | Prolonged use in high-temperature environments. | |
| Impact Strength | High | Toughness at both room and elevated temperatures. |
Applications of ASTM A312 TP310S Pipe:
- Petrochemical and Chemical Industries: Handles corrosive materials and high-temperature fluids.
- Power Plants: Suitable for superheater and reheater tubes in boilers.
- Furnaces and Thermal Equipment: Used in environments requiring excellent heat resistance.
- Food and Beverage Industry: For processing environments requiring cleanliness and corrosion resistance.
Benefits of Using ASTM A312 TP310S:
- Durability: High mechanical strength and toughness, even at elevated temperatures.
- Corrosion Resistance: Excellent performance in acidic and oxidizing environments.
- Versatility: Seamless design makes it suitable for critical applications.
- Low Maintenance: Longer service life reduces maintenance costs.
Standards and Specifications:
- Manufacturing Standard: ASTM A312
- Pipe Type: Seamless
- Dimension Standards: ASME B36.19 and B36.10
- Available Sizes: Typically ranges from 1/8” to 24” in diameter, with customized sizes available upon request.
- Surface Finish: Pickled, polished, or as per customer requirements.
