ASTM A182 F5 Stainless Steel Weld Neck Flange RF / FF for Petrochemical Power Plants
Price:
Negotiable
MOQ:
500KGS
Delivery Time:
15-30days
Brand:
YUHONG
Product Description

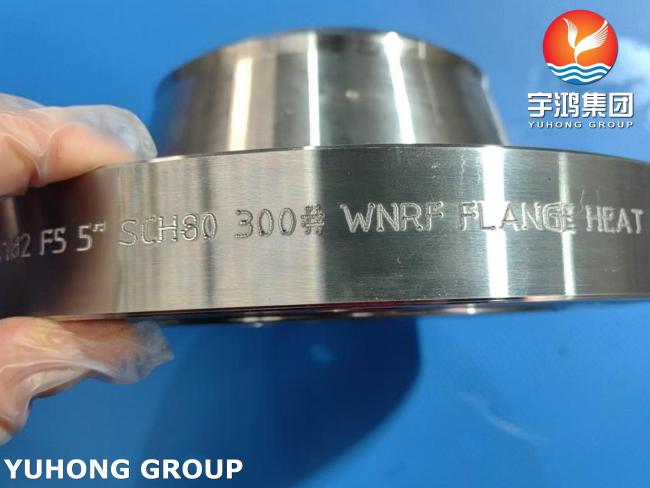

ASTM A182 F5 Stainless Steel Weld Neck Flange RF/FF for Petrochemical and Power Plants
YUHONG GROUP is a leading manufacturer of industrial piping components with 30+ years of experience. We specialize in producing ASTM/ASME standard flanges for global clients in petrochemical, power generation and heavy industries.
Heat Treating Requirements for F5
| Grade | Heat Treat Type | Austenitizing/Solutioning Temperature, Minimum or Range, °F [°C] | Cooling Media | Tempering Temperature, Minimum or Range, °F [°C] |
| F5 | anneal normalize and temper |
1650 [900] |
furnace cool | 1150 [620] |
Chemical Requirements for F5
| Grade | UNS Designation | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Nickel | Chromium | Molybdenum |
| F5 | K41545 | 0.15 | 0.30 - 0.60 | 0.03 | 0.03 | 0.5 | 0.5 | 4.0 - 6.0 | 0.44 - 0.65 |
Tensile and Hardness Requirements for F5
| Grade Symbol | Tensile Strength, min, ksi [MPa] | Yield Strength, min, ksi [MPa]B | Elongation in 2 in. [50 mm] or 4D, min, % | Reduction of Area, min, % | Brinell Hardness Number, HBW, unless otherwise indicated |
| F5 | 70 [485] | 40 [275] | 20 | 35 | 143 - 217 |
