ASTM A335 P9 SERRATED FIN TUBE For Oil Refining Condencer

ASTM A335 P9 is a chromium-molybdenum alloy steel widely used in high-temperature and high-pressure applications. It is known for its excellent strength, corrosion resistance, and ability to withstand thermal and mechanical stresses. Key features of ASTM A335 P9 include:

• Material Composition:

  • Chromium (Cr): 8.0-10.0%
  • Molybdenum (Mo): 0.90-1.10%
  • Carbon (C), Manganese (Mn), Silicon (Si), Phosphorus (P), Sulfur (S), and others.

• Applications:

  • Power plants
  • Boilers
  • Heat exchangers
  • Petrochemical and chemical industries

• Advantages:

  • High resistance to oxidation and scaling at elevated temperatures.
  • Excellent strength and creep resistance.
  • Superior weldability and machinability.

2. What is a Serrated Fin Tube?

• Key Features of Serrated Fin Tubes:

  • Enhanced thermal conductivity due to increased surface area.
  • Reduced fouling and deposits due to the serrated design.
  • Compact and lightweight design for efficient installation.

• Applications:

  • Air-cooled heat exchangers
  • Gas coolers
  • Economizers
  • Oil and gas processing units

3. ASTM A335 P9 Serrated Fin Tube

• Manufacturing Process:

  • Base Tube Production: The base tube is made from ASTM A335 P9 alloy steel, ensuring high strength and resistance to thermal stress.
  • Fin Attachment: Serrated fins, typically made from similar or compatible materials, are helically wound and securely attached to the base tube. The attachment can be achieved through techniques like high-frequency welding or mechanical wrapping.
  • Fin Serration: The fins are serrated (notched) to increase turbulence in the fluid flow, which improves heat transfer efficiency.

• Specifications:

  • Material:
    • Base Tube: ASTM A335 P9
    • Fins: Carbon steel, stainless steel, or alloy steel
  • Tube Dimensions:
    • Outer Diameter (OD): As per design requirements (commonly between 1" to 8")
    • Wall Thickness: As per ASTM A335 P9 standards
  • Fin Dimensions:
    • Fin Height: Typically 5mm-15mm
    • Fin Pitch: 2mm-10mm
    • Fin Thickness: 0.5mm-1.5mm
  • Operating Conditions:
    • Temperature: Up to 600–650°C (dependent on material selection)
    • Pressure: Suitable for high-pressure systems

4. Advantages of ASTM A335 P9 Serrated Fin Tubes

• High Thermal Efficiency: The serrated design promotes turbulence in fluid flow, improving heat transfer rates.
• Durability: The P9 alloy steel base tube provides exceptional resistance to high temperatures, oxidation, and thermal stresses.
• Corrosion Resistance: Chromium and molybdenum in P9 enhance resistance to corrosion and scaling.
• Energy Savings: Improved heat transfer efficiency reduces energy consumption and operational costs.
• Customization: Serrated fins can be tailored to specific dimensions, pitches, and thicknesses to meet application requirements.

5. Applications of ASTM A335 P9 Serrated Fin Tubes

• Power Generation:

  • Steam boilers
  • Economizers
  • Heat recovery steam generators (HRSGs)

• Petrochemical and Refinery:

  • Air-cooled heat exchangers
  • Process heaters
  • Gas coolers

• Oil and Gas:

  • Offshore platforms
  • Gas processing plants
  • LNG terminals

• Chemical Processing:

  • Heat exchangers in chemical reactors
  • Condensers and evaporators

6. Quality Standards and Testing

• Material Testing:

  • Chemical composition analysis
  • Mechanical property testing (tensile strength, hardness, etc.)

• Nondestructive Testing (NDT):

  • Ultrasonic testing
  • Radiographic testing
  • Eddy current testing

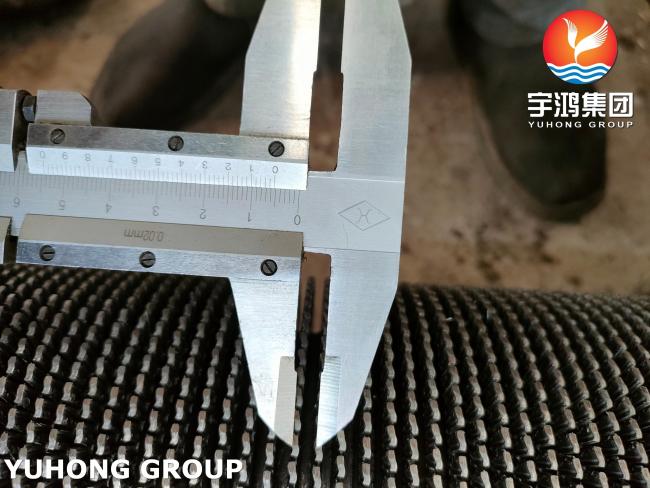

• Dimensional Inspection:

  • Verification of tube and fin dimensions
  • Fin attachment integrity

• Operational Testing:

  • Thermal performance testing
  • Corrosion resistance evaluation

7. Conclusion
