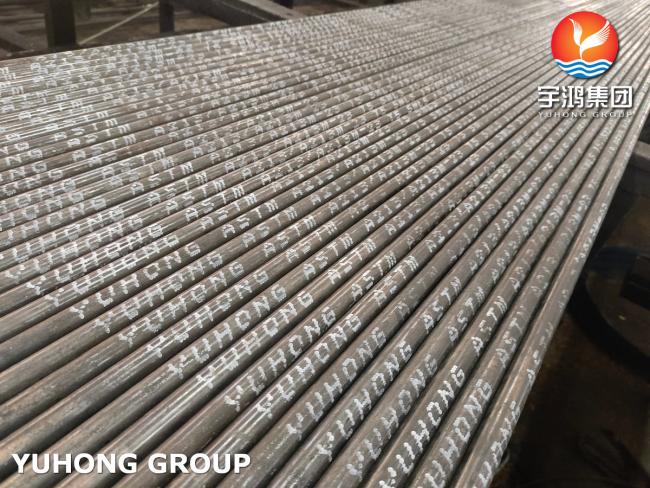

ASME SA213 T5 Ferritic And Austenitic Seamless Alloy Steel Tubes For Boiler
ASME SA213 T5 Ferritic And Austenitic Seamless Alloy Steel Tubes For Boiler
ASME SA213 T5 is a specification for seamless ferritic and austenitic alloy steel tubes. These tubes are widely used in high-temperature services such as boilers, superheaters, and heat exchangers. Below is a detailed introduction to ASME SA213 T5 tubes:
1. Material Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.15 Max |
| Manganese (Mn) | 0.30–0.60 |
| Phosphorus (P) | 0.025 Max |
| Sulfur (S) | 0.025 Max |
| Silicon (Si) | 0.50 Max |
| Chromium (Cr) | 4.00–6.00 |
| Molybdenum (Mo) | 0.45–0.65 |
The addition of chromium and molybdenum improves corrosion resistance, high-temperature strength, and oxidation resistance.
2. Manufacturing Process
- Type: Seamless Tubes
ASME SA213 T5 tubes are manufactured using a seamless process to ensure high strength and resistance to pressure. - Heat Treatment:
- Fully annealed, normalized, or normalized and tempered.
- Heat treatment improves grain structure, mechanical properties, and stress resistance.
3. Standards and Specifications
- Standard: ASME SA213/ASTM A213
- Grade: T5
- Dimensions:
Tubes are available in various sizes as specified by ASME standards:- Outer Diameter (OD): 1/8" to 5" (3.2 mm to 127 mm)
- Wall Thickness (WT): 1 mm to 12 mm
- Length: Random, fixed, or customer-specific lengths.
- Tolerances:
Tolerances for OD, wall thickness, and length are defined as per ASME standards.
4. Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | Min 415 MPa (60,000 psi) |
| Yield Strength | Min 205 MPa (30,000 psi) |
| Elongation | Min 30% |
| Hardness | Max 163 HBW (Brinell) or 85 HRB |
5. Features and Benefits
- High-Temperature Strength:
Suitable for temperatures up to 650°C (1202°F), making it ideal for boiler and heat exchanger applications. - Corrosion Resistance:
Chromium and molybdenum improve resistance to oxidation, pitting, and crevice corrosion. - Pressure Resistance:
Seamless construction ensures the tubes can handle high internal pressures. - Long Service Life:
The alloy composition ensures durability and long-term performance, even under harsh conditions.
6. Applications
ASME SA213 T5 tubes are primarily used in industries requiring high strength and corrosion resistance at elevated temperatures:
- Boilers:
Used in water tube and fire tube boilers for transferring heat under high-pressure conditions. - Superheaters:
Withstand high temperatures and resist deformation in superheating environments. - Heat Exchangers:
Efficient heat transfer in power plants and chemical processing industries. - Petrochemical Plants:
Suitable for use in refineries and chemical processing units. - Power Generation:
Essential in steam generation systems for thermal and nuclear power plants.
7. Quality Testing
ASME SA213 T5 tubes undergo rigorous testing to ensure performance and reliability, including:
- Hydrostatic Testing: Verifies tube strength and leakage resistance.
- Non-Destructive Tests (NDT): Includes ultrasonic and eddy current testing for flaws or defects.
- Mechanical Testing: Tests for tensile strength, hardness, and elongation.
- Chemical Analysis: Ensures compliance with composition specifications.
8. Advantages of ASME SA213 T5
- Exceptional thermal and mechanical stability.
- Compatibility with high-pressure and high-temperature environments.
- Versatility across various industrial applications.
- Excellent resistance to chemical corrosion and oxidation.
