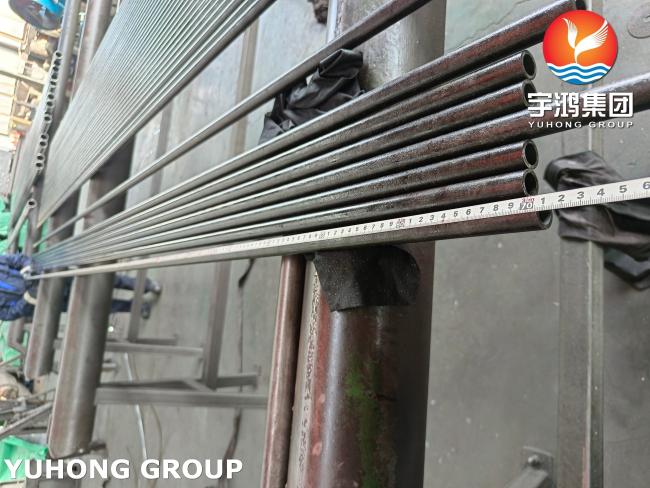

ASTM A334 Gr.6 Alloy Steel Seamless Tube For Boiler And Heat Exchanger
ASTM A334 Gr.6 Alloy Steel Seamless Tube For Boiler And Heat Exchanger
ASTM A334 Gr. 6 is a specification for seamless and welded carbon and alloy steel tubes designed for low-temperature service. These tubes are widely used in industries where excellent toughness and durability at sub-zero temperatures are critical. Below is a comprehensive overview of ASTM A334 Gr. 6 alloy steel seamless tubes:
1. Material and Composition
ASTM A334 Gr. 6 is primarily a carbon and alloy steel material. Its composition ensures ductility, toughness, and strength under extreme low-temperature conditions. The chemical composition for Grade 6 typically includes:
| Element | Percentage |
|---|---|
| Carbon (C) | Max 0.30% |
| Manganese (Mn) | 0.29–1.06% |
| Phosphorus (P) | Max 0.025% |
| Sulfur (S) | Max 0.025% |
| Silicon (Si) | 0.10–0.50% |
2. Key Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | Min 415 MPa (60 ksi) |
| Yield Strength | Min 240 MPa (35 ksi) |
| Elongation (in 2 inches) | Min 30% |
| Impact Toughness (Charpy) | Specified for low-temperature performance |
3. Manufacturing Process
ASTM A334 Gr. 6 seamless tubes are manufactured using the following steps:
- Hot or Cold Drawing: The steel is processed through either hot or cold drawing techniques to achieve the required dimensions.
- Heat Treatment: Tubes undergo normalization or stress-relieving processes to enhance strength and toughness.
- Nondestructive Testing: Tubes are tested for defects such as cracks or irregularities using ultrasonic or eddy current testing.
- Hydrostatic Testing: Each tube is subjected to pressure testing to ensure no leaks or weaknesses.
4. Low-Temperature Suitability
The Grade 6 alloy is designed for low-temperature applications, with guaranteed impact toughness at temperatures as low as -45°C (-50°F). This makes it ideal for environments such as:
- Cryogenic applications.
- Arctic pipelines.
- Low-temperature heat exchangers.
5. Applications
ASTM A334 Gr. 6 seamless tubes are widely used in the following industries and applications:
- Oil and Gas: Transport of liquids and gases in cryogenic systems.
- Petrochemical: Low-temperature heat exchangers and condensers.
- Power Plants: Boiler and pressure vessel components.
- Marine: Pipelines for offshore platforms.
- Construction: Structural applications in cold regions.
6. Standards and Testing
ASTM A334 Gr. 6 tubes must meet stringent testing and quality control standards, including:
- Tensile Testing: Ensures the tubes meet required strength levels.
- Impact Testing: Charpy V-notch tests ensure ductility at low temperatures.
- Hydrostatic Testing: Confirms the tubes' pressure resistance.
- Dimensional Inspection: Verifies that the outer diameter, wall thickness, and length are within specified tolerances.
7. Benefits of ASTM A334 Gr. 6 Tubes
- Low-Temperature Performance: Excellent toughness and ductility at sub-zero temperatures.
- Corrosion Resistance: Enhanced resistance to rust and oxidation.
- High Strength: Efficiently handles mechanical and thermal stresses.
- Durability: Long service life under harsh conditions.
- Versatile Applications: Usable in a wide range of industries.
