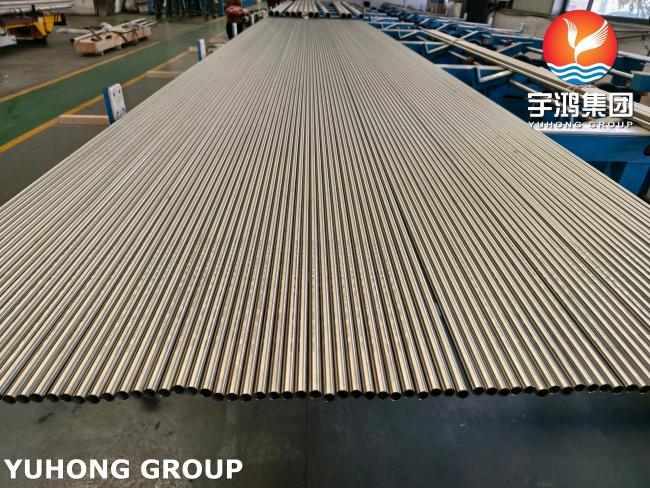

YUHONG Group can offer ASTM B163 / ASME SB163 N08810 SMLS nickel alloy tubes.
ASTM B163 This specification covers seamless tubes of nickel and nickel alloys, for use in condenser, heat-exchanger and other industrial service. ASME SB163 N08810 (Alloy 800H) seamless tubes are engineered for high-temperature and high-pressure service where resistance to oxidation, carburization, and creep rupture is the primary requirement.
Below are advantages of material N08810:
1.High-Temperature Strength
2.Resistance to High-Temperature Corrosion
Oxidation Resistance: The high chromium content (19-23%) forms a stable, protective chromium oxide (Cr₂O₃) scale that resists spalling and protects the base metal from further oxidation in air or steam.Carburization Resistance: Resists the absorption of carbon in hydrocarbon-rich, high-temperature environments (e.g., furnace tubes), which can cause embrittlement and failure in other alloys.Sulfidation Resistance: Moderate resistance to sulfur-bearing atmospheres.
3.Stability in Petrochemical Processes and Good Microstructural Stability
Chemical Composition % UNS N08810
| Ni | Cu | Fe | Mn | C | Si | S | Cr | Al | Ti |
| 30.0-35.0 | 0.75 max | 39.5 min | 1.5 | 0.05-0.10 | 1.0 | 0.015 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
| Iron element shall be determined arithmetically by difference. | |||||||||
Mechanical Property UNS N08810
| Condition | Tensile Strength min | Yield Strength min | Elongation (%) |
| Annealed | 65ksi (448MPa) | 25ksi (172MPa) | 30 min. |
Applications
| Steam Methane Reformer (SMR) Furnaces: reformer catalyst tubes |
| Ethylene Cracking Furnaces: tubes in radiant and convection sections |
| Nuclear Power Systems: steam generator tubes---High-Temperature Gas-Cooled Reactors (HTGRs) |
| High Temperature Heat Exchangers: Waste Heat Boilers;Superheaters and Reheaters;Charge Gas Effluent Exchangers |
