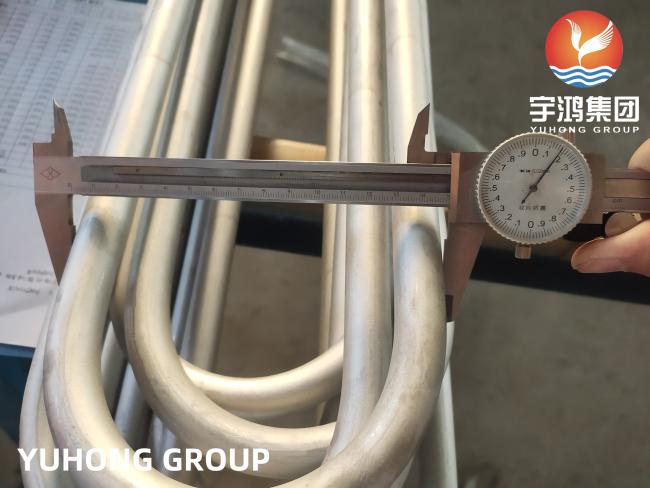

ASTM A213 TP321 Seamless U Bend Heat Exchanger Tube for High-Temperature Service
ASTM A213 TP321 Seamless U Bend Heat Exchanger Tube for High-Temperature Service
Product Description
1. Introduction & Standard Specification
This product refers to seamless U-bend tubes made from TP321 austenitic stainless steel, manufactured in strict compliance with the ASTM A213/A213M standard. This specification is the global benchmark for seamless ferritic and austenitic alloy-steel tubes designed for critical service in boilers, superheaters, and heat exchangers.
The "U-bend" geometry is engineered to absorb thermal expansion within the heat exchanger, reducing stress on the tube sheets and shell. The TP321 grade is specifically stabilized with titanium to prevent carbide precipitation during high-temperature exposure, making it ideal for intermittent heating in the range of 427°C to 816°C.
2. Material & Key Features: TP321 Stainless Steel
TP321 is a titanium-stabilized evolution of the classic 304 stainless steel. The addition of titanium (Ti) is its defining characteristic, which combines with carbon to prevent the formation of chromium carbides at grain boundaries. This imparts exceptional resistance to intergranular corrosion, particularly after welding or exposure to high temperatures, a common failure point in heat exchanger applications.
3. Chemical Composition & Mechanical Properties
The tables below summarize the key material properties as per standard specifications and typical values.
Typical Chemical Composition (Weight %):
| Element | Content (%) | Notes |
|---|---|---|
| Carbon (C) | ≤ 0.08 | Low carbon content aids weldability and corrosion resistance. |
| Chromium (Cr) | 17.00 - 19.00 | Provides basic corrosion resistance and high-temperature strength. |
| Nickel (Ni) | 9.00 - 12.00 | Stabilizes the austenitic structure and enhances toughness. |
| Titanium (Ti) | ≥ 5(C%) up to 0.70 | Key stabilizing element for preventing intergranular corrosion. |
| Manganese (Mn) | ≤ 2.00 | |
| Silicon (Si) | ≤ 1.00 | |
| Phosphorus (P) | ≤ 0.045 | |
| Sulfur (S) | ≤ 0.030 |
Room Temperature Mechanical Properties:
| Property | Metric unit | Imperial unit |
|---|---|---|
| Tensile Strength | ≥ 515 MPa | ≥ 75 ksi |
| Yield Strength | ≥ 205 MPa | ≥ 30 ksi |
| Elongation (%) | ≥ 35 | ≥ 35 |
4. Product Applications
ASTM A213 TP321 U-bend tubes are the material of choice for demanding thermal and corrosive environments across industries:
-
Petrochemical & Refining: Ideal for heat exchangers, condensers, and high-temperature transfer lines handling corrosive media like sulfuric acid or petroleum fractions.
-
Power Generation: Used in boiler systems, superheaters, and feedwater heaters in fossil fuel and nuclear power plants due to their high-temperature creep strength.
-
Chemical Processing: Essential for reactors, pyrolysis tubes, and heat recovery systems where equipment undergoes frequent heating cycles.
-
Other Industries: Also found in aerospace (engine components), shipbuilding, and food/pharmaceutical processing where high hygiene and corrosion resistance are required.
