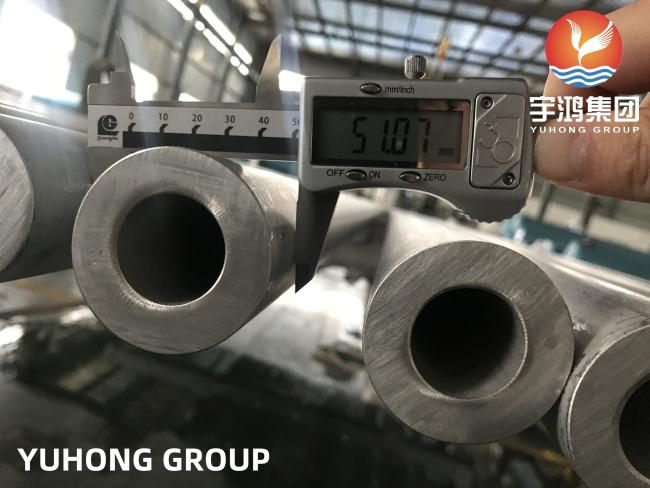

ASME SA213 TP347H Seamless Tube Austenitic Stainless Steel Heat Exchanger & Boiler Tube
High-Temperature & Corrosion-Resistant Tubing for Critical Applications
ASTM A213 TP347H is a seamless, austenitic stainless steel tube specifically engineered for high-temperature service in demanding environments. Designated as a heat-resistant grade (indicated by the "H"), it delivers superior creep-rupture strength compared to its non-H counterparts, making it a reliable choice for pressure-bound applications.
This grade belongs to the niobium-stabilized Cr-Ni austenitic family. The addition of niobium (Nb) significantly enhances its resistance to intergranular corrosion, particularly in environments containing acids, alkalis, and salts. It offers better high-temperature strength and oxidation resistance than standard Type 316 stainless steel.
Primary Standards & Specifications
- Governing Standard: ASTM A213/A213M - Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
- Common Size Range: Outside diameter from 3.2 mm (1/8 in) to 127 mm (5 in) with minimum wall thickness ranging from 0.4 mm to 12.7 mm
- Manufacturing Process: Seamless, available in hot-finished or cold-finished conditions
Material & Chemical Composition
TP347H is a high-carbon, niobium-stabilized austenitic stainless steel. The chemical composition ensures stability and strength under thermal stress.
| Element | Composition Range (%) | Key Function |
|---|---|---|
| Carbon (C) | 0.04 - 0.10 | Enhances high-temperature strength |
| Manganese (Mn) | ≤ 2.00 | Improves hot ductility and strength |
| Silicon (Si) | ≤ 1.00 | Deoxidizer that improves oxidation resistance |
| Phosphorus (P) | ≤ 0.045 | Impurity element, controlled to low levels |
| Sulfur (S) | ≤ 0.030 | Impurity element, controlled to low levels |
| Chromium (Cr) | 17.00 - 19.00 | Provides fundamental corrosion and oxidation resistance |
| Nickel (Ni) | 9.00 - 13.00 | Stabilizes the austenitic structure and improves toughness |
| Niobium (Nb) | 0.80 - 1.00 (or 8xC min) | Critical Element. Forms stable carbides to prevent chromium depletion at grain boundaries, granting exceptional resistance to intergranular corrosion |
Mechanical & Physical Properties
TP347H offers a robust combination of strength, ductility, and stability for high-temperature operations.
| Property | Standard Requirement |
|---|---|
| Tensile Strength | ≥ 515 MPa (75 ksi) |
| Yield Strength (0.2% Offset) | ≥ 205 MPa (30 ksi) |
| Elongation (A5) | ≥ 35% |
| Hardness (Brinell) | ≤ 192 HB |
Main Application Scenarios
Thanks to its high-temperature strength, oxidation resistance, and corrosion stability, ASTM A213 TP347H tubes are the material of choice for critical components in several heavy industries:
- Power Generation: Superheater and reheater tubes, main steam lines, and high-pressure boiler tubing in fossil fuel and thermal power plants
- Petrochemical & Chemical Processing: Heat exchanger tubes, reactor internals, and piping systems that handle corrosive media at elevated temperatures
- Oil & Gas Refining: Tubing for refinery heaters, heat recovery systems, and other high-temperature processing units
- Other Industries: Also finds application in synthetic fiber, food, and paper industries where similar corrosion and temperature challenges exist
