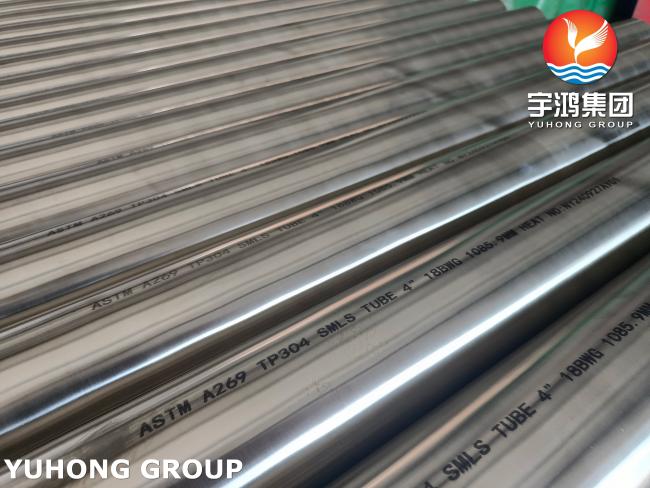

ASTM A269 TP304（UNS S30400） Stainless Steel Seamless / Welded Tube for Corrosion Resistance and High Low Temperature Industrial
Price:
Negotiable
MOQ:
100KGS
Delivery Time:
Depends on quantity
Brand:
YUHONG
Product Description
ASTM A269 TP304(UNS S30400) Stainless Steel Seamless / Welded Tube for Corrosion Resistance and High Low Temperature Industrial
TP304 stainless steel tube is an austenitic product manufactured in strict compliance with ASTM A269, designated as UNS S30400. This tubing is suitable for general corrosion-resisting and high/low temperature service scenarios, and is widely utilized in global industrial applications.
Core Chemical Composition
| Carbon (C) | Chromium (Cr) | Nickel (Ni) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) |
|---|---|---|---|---|---|---|
| ≤0.08% | 18.00%-20.00% | 8.00%-11.00% | ≤2.00% | ≤0.75% | ≤0.045% | ≤0.030% |
Dimensional Specifications
| Outside Diameter (OD) | Wall Thickness (WT) | Standard Length | OD Precision | WT Tolerance | Applicable Type | Cutting End Face | Customization Range |
|---|---|---|---|---|---|---|---|
| 1/4 in (6.4mm) - 5 in (127mm) (Standard, per ASTM A269), Customizable up to 24.8 in (630mm) | 0.020 in (0.51mm) - 0.5 in (12.7mm) (Standard, per ASTM A269), Customizable up to 0.79 in (20mm) | 1m-12m (Custom Length on Demand) | ±0.05mm | ±0.1mm | Seamless/Welded Tube | Smooth, Burr-Free, Uniform Bevel | Full-Size Customization on Demand |
Testing Items
| Mandatory Chemical Test | Mandatory Mechanical Test | Mandatory Pressure Test | Mandatory Appearance Test | Optional Corrosion Test | Optional Non-Destructive Test | Testing Equipment |
|---|---|---|---|---|---|---|
| Direct Reading Spectrometer Test | Tensile Strength (≥515MPa), Yield Strength (≥205MPa), Elongation (≥40%), Flaring/Flange Test (per ASTM A269) | Hydrostatic/Pneumatic Test, Non-Destructive Electrical Test | Full-Size Precision, Surface Defect Inspection | Salt Spray Test, Intergranular Corrosion Test (Optional, Negotiable per ASTM A269 Supplementary Requirements) | Ultrasonic Testing (UT), Radiographic Testing (RT) | Spectrometer, Hardness Tester, Flaw Detector |
Core Supplementary Information
| Product Advantages | Application Scenarios (Typical A269 Service Conditions) |
|---|---|
| Strictly compliant with ASTM A269/A269M American Standard, excellent corrosion resistance, good processability, eco-friendly & hygienic, high cost-performance for global industrial applications | Chemical Industry, Food & Pharmaceutical, High/Low Temperature Tubing, Industrial Transportation, Municipal |
