ASTM A240 F904L Slip On Flat Face Flange AWWA C207 Table2 Class D Meets US Water Standards
Price:
Negotiable
MOQ:
3 Pieces
Delivery Time:
5 - 60 work days
Brand:
YUHONG
Product Description

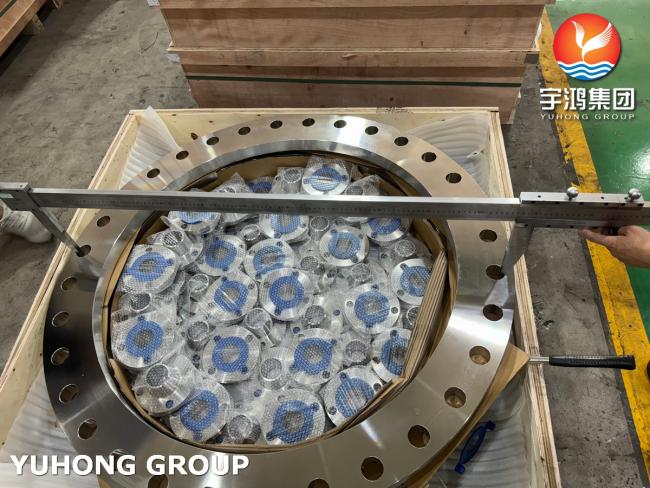

ASTM A240 F904L Slip On Flat Face Flange AWWA C207 Table2 Class D Meets US water standards
ASTM A240 is a standard specification from the American Society for Testing and Materials (ASTM) for chromium and chromium-nickel stainless steel plates, sheets, and strips used in pressure vessels and general applications.
904L, a high-alloy austenitic stainless steel, is renowned for its excellent corrosion resistance, particularly to sulfuric acid, phosphoric acid, and chloride-containing media. Its key alloying elements are high chromium, nickel, molybdenum, and copper content. This flange also conforms to AWWA C207 and meets the Water Works Association's "Steel Pipe Flanges" standard. It is recognized by the North American water industry and many general industries.
In the AWWA C207 standard, the default face type for Class D flanges is usually flat-face aligned, but it can also be specified as fully flat.
| Chemical Composition (ASTM A240 F904L) | ||
| Element | Composition, % (min) | Composition, % (max) |
| Carbon (C) | - | 0.02 |
| Manganese (Mn) | - | 2 |
| Phosphorus (P) | - | 0.045 |
| Sulfur (S) | - | 0.035 |
| Silicon (Si) | - | 1 |
| Chromium (Cr) | 19 | 23 |
| Nickel (Ni) | 23 | 28 |
| Molybdenum (Mo) | 4 | 5 |
| Copper (Cu) | 1 | 2 |
| Nitrogen (N) | - | 0.1 |
| Iron (Fe) | Balance | |
| Mechanical Properties (ASTM A240 F904L) | ||
| Property | Requirement | Note |
| Tensile Strength, min | 71 ksi (490 MPa) | |
| Yield Strength (0.2% offset), min | 31 ksi (220 MPa) | |
| Elongation in 2 in. (50 mm), min | 35% | For plates ≤ 3/4 in. (19 mm) thick. Slightly lower for thicker plates. |
| Hardness, max | 90 HRB (Rockwell B) | Typical Brinell Hardness (HBW) is ~180. |
| Important Fabrication Note: To achieve these mechanical properties and optimal corrosion resistance, the material and any welded fabrications must be supplied in the solution-annealed condition. This involves heating to a suitable temperature (e.g., 1100-1150°C) and rapidly quenching. | ||
Application:
1. Water & Wastewater Treatment • Seawater Intake & Discharge Lines
2. Chemical & Petrochemical Processing
3. Offshore, Marine & Desalination • Desalination Plant high-pressure RO trains, inter-stage piping, and effluent lines.
4. Pulp & Paper Industry
5. Power Generation
