ASTM A182 F51 BL RF Flange, Duplex Stainless Steel Blind Raised Face Flange
Price:
Negotiable
MOQ:
1PC
Delivery Time:
7 Days
Brand:
YUHONG
Product Description

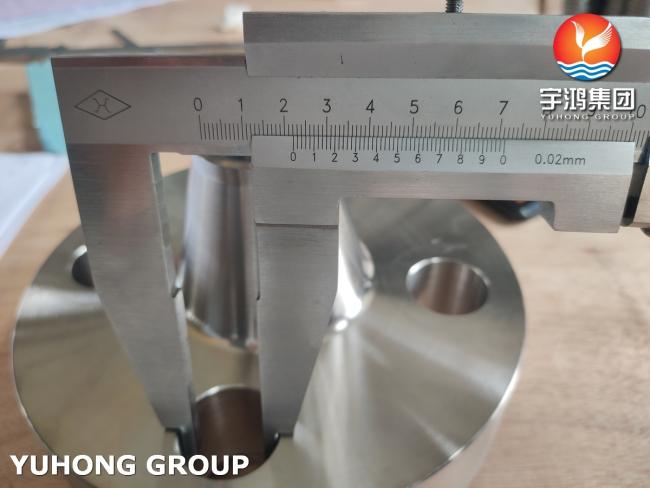

ASTM A182 F51 BL RF Flange, Duplex Stainless Steel Blind Raised Face Flange
Brief Introduction
ASTM A182 F51 BL RF Flange is a duplex stainless steel blind flange manufactured in accordance with ASTM A182 and ASME B16.5 standards. F51 duplex stainless steel combines high strength with excellent resistance to pitting, crevice corrosion and stress corrosion cracking. As a Blind (BL) flange with Raised Face (RF), it is used to terminate, seal or isolate pipeline ends, widely applied in aggressive environments including offshore, oil & gas, chemical and seawater systems.
Chemical Composition (wt%, typical)
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| F51 | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.035 | ≤0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 | 0.08–0.20 | Balance |
Typical Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥620 MPa |
| Yield Strength | ≥450 MPa |
| Elongation | ≥25% |
| Hardness | ≤290 HB |
| Working Temperature | -50°C ~ 315°C |
Available Tests
- Chemical Composition Analysis (PMI, Spectrometer)
- Tensile, Bend & Impact Test
- Hardness Test (HB)
- Ferrite Number Test
- Dimensional Inspection
- Visual & Surface Inspection
- Hydrostatic / Pneumatic Pressure Test
- Non-Destructive Testing (PT, UT)
- Pitting Corrosion Test (optional)
- Material Test Certificate (MTC 3.1/3.2)
Product Application Scope
- Offshore platforms and marine engineering
- Oil & gas production and transmission
- Seawater treatment and desalination plants
- Chemical and petrochemical processing
- Pulp and paper industry
- Desulfurization systems
- High chloride and corrosive environments
![]()
