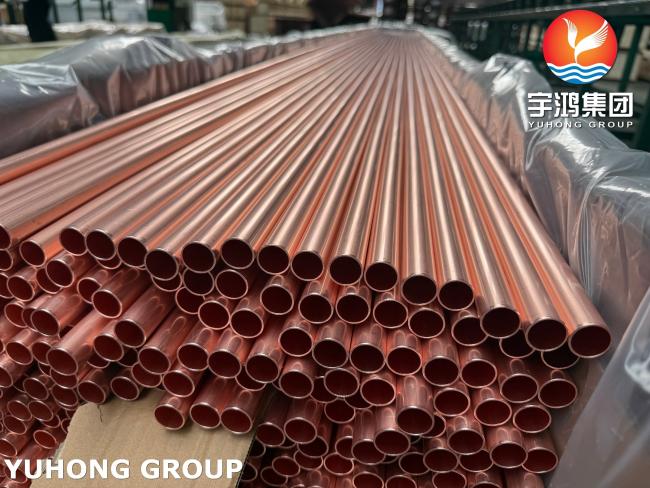

ASTM B111 C12200 Seamless (Smls) Tube, High-Quality Copper Alloy Seamless Tube
ASTM B111 C12200 Seamless (Smls) Tube, High-Quality Copper Alloy Seamless Tube
Brief Introduction
C12200 B111 Seamless (Smls) Tube is a high-performance copper alloy seamless tube, strictly manufactured in accordance with ASTM B111 standard (Standard Specification for Seamless Copper and Copper Alloy Tubes for Condensers and Heat Exchangers). It is mainly made of C12200 copper alloy (commonly known as red copper), which has excellent thermal conductivity, electrical conductivity, ductility and corrosion resistance. As a seamless-structured product, it eliminates the hidden dangers of leakage and structural instability caused by welding seams, ensuring high pressure resistance and long-term stable operation. The product integrates the superior performance of C12200 copper alloy and the structural advantages of seamless tubes, and is widely used in scenarios requiring efficient heat transfer, corrosion resistance and good electrical conductivity, such as condensers, heat exchangers, hydraulic systems and marine equipment.
Chemical Composition Analysis (wt%)
| Material Grade | Cu (Copper) | Pb (Lead) ≤ | Fe (Iron) ≤ | Zn (Zinc) | Others ≤ |
| C12200 Copper Alloy (ASTM B111) | 89.0-91.0 | 0.05 | 0.05 | Remainder | 0.10 |
Typical Mechanical Properties
| Mechanical Property | C12200 (Annealed) | C12200 (Cold Drawn) | ASTM B111 Requirement |
| Yield Strength (Rp0.2), MPa | ≥70 | ≥200 | ≥65 |
| Tensile Strength (Rm), MPa | 220-280 | 350-420 | ≥210 |
| Elongation (A), % | ≥35 | ≥10 | ≥30 |
| Hardness (HB), Brinell | ≤65 | 80-100 | ≤70 |
| Reduction of Area, % | ≥60 | ≥45 | ≥55 |
| Thermal Conductivity, W/(m·K) | 370-380 | 360-370 | ≥360 |
Available Tests
| Test Type | Standard |
| Chemical Composition Analysis (PMI) | Spectrometer (XRF/OES), ASTM E1019, ASTM B111 |
| Tensile & Impact Test | ASTM E8/E8M, ASTM B111, Charpy V-Notch |
| Hardness Test | ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers |
| Corrosion Resistance Test | ASTM B117 (Salt Spray), Neutral Salt Spray Test, Corrosion Test in Acid/Alkali Medium |
| Non-Destructive Testing (NDT) | Eddy Current Test, UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant) |
| Hydrostatic/Pneumatic Pressure Test | ASTM B111, Pressure Test for Seamless Copper Tubes |
| Dimensional & Visual Inspection | ASTM B111, CMM, Gauge Inspection, Surface Finish Test |
| Material Test Certificate (MTC) | EN 10204 3.1/3.2, ASTM B111 |
| Flattening & Flaring Test | ASTM B111 (Standard for Seamless Copper and Copper Alloy Tubes) |
| Thermal Conductivity Test | ASTM D5470, Thermal Conductivity Measurement Standard |
Product Application Scope
| Industry Field | Typical Applications |
| Thermal Power & Heat Exchange Industry | Power plant condensers, heat exchangers, boiler economizers, air preheaters, cooling water pipelines |
| Petrochemical & Chemical Industry | Petroleum refining heat exchangers, chemical reaction kettle heat transfer tubes, corrosive medium transmission pipelines |
| Marine Industry | Marine condensers, heat exchangers, ship hydraulic system pipelines, marine electrical conduction tubes |
| Refrigeration & Air Conditioning Industry | Air conditioner evaporators, condensers, refrigeration unit heat exchange tubes, central air conditioning systems |
| Electrical & Electronic Industry | Electrical conduction tubes, transformer cooling tubes, electronic equipment heat dissipation tubes, electrical cabinet bushing tubes |
| Other Fields | Hydraulic transmission pipelines, medical equipment (non-toxic requirements), food processing equipment, architectural decoration tubes |
