Spiral Welded Finned Tubes with A106 Base Pipe CS Fins for Heat Exchangers
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
Depends on quantity
Brand:
YUHONG
Product Description

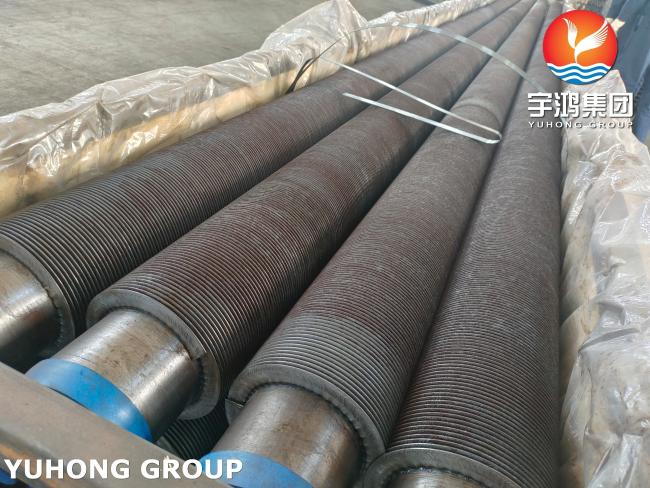

High-Frequency Welded Finned Tubes: ASTM A106 Carbon Steel Base Tube + Carbon Steel (CS) Fins
1. Product Overview
High-frequency welded (HFW) finned tubes combine ASTM A106 Gr.B seamless carbon steel
base tubes with carbon steel fins using advanced solid-state welding technology. These tubes
deliver 8-10x higher heat transfer efficiency versus bare pipes, ideal for heat recovery systems,
boilers, and process heaters operating at ≤400°C.
2. Fin Tube Structure & Manufacturing Process
| Component | Material | Key Process |
|---|---|---|
| Base Tube | ASTM A106 Gr.B | Seamless cold-drawn, OD 25.4-114.3mm |
| Fins | Carbon Steel (CS) | High-frequency welding (2,000 Hz), no filler |
| Bond Quality | Metallurgical fusion | 100% ultrasonic tested, shear strength ≥35MPa |
3. Chemical Composition (ASTM Standards)
Base Tube (A106 Gr.B):
| Element | C | Mn | P (max) | S (max) | Si |
|---|---|---|---|---|---|
| % | ≤0.30 | 0.29-1.06 | 0.035 | 0.035 | ≥0.10 |
Fins (Carbon Steel SPHC):
| Element | C (max) | Mn (max) | P (max) | S (max) | Al (min) |
|---|---|---|---|---|---|
| % | 0.12 | 0.50 | 0.040 | 0.040 | 0.020 |
4. Critical Dimensions & Tolerances
| Parameter | Range/Tolerance | Standard |
|---|---|---|
| Base Tube OD | 25.4 - 219 mm (±0.15mm) | ASTM A106 |
| Fin Height (H) | 5 - 30 mm (±0.5mm) | HEI Standards |
| Fin Thickness (T) | 0.8 - 3.0 mm (±0.1mm) | Custom |
| Fin Pitch | 4-25 (±0.2) | ASME B36.10M |
| Max Length | 24 meters (straightness ≤1mm/m) | Custom |
5. Performance Advantages
- ✅ Heat Transfer Coefficient: 45-65 W/m²K (vs. 5-8 W/m²K for bare tubes)
- ✅ Corrosion Resistance: Zinc/aluminized coating optional for acidic environments
- ✅ Pressure Rating: Up to 15 MPa at 350°C (ASME B31.1 compliant)
- ✅ Thermal Fatigue Life: >10,000 cycles (per ASTM E606)
6. Application-Specific Solutions
| Industry | Use Case | Tube Configuration Example |
|---|---|---|
| Power Plants | Economizers, Air Preheaters | OD 50.8mm + 16mm fins @ 197 FPM |
| Petrochemical | Process Gas Heaters, Reactors | OD 76.2mm + 19mm fins @ 230 FPM |
| HVAC | Thermal Fluid Heaters, Dehumidifiers | OD 38.1mm + 12.7mm fins @ 180 FPM |
| Waste Heat Recovery | Exhaust Gas Boilers (≤550°C) | Aluminized coating + 25.4mm fins |
7. Why Choose Our HFW Finned Tubes?
- 15+ Years Expertise: 200+ projects across 30 countries
- Certifications: ISO 9001, ASME Section VIII, PED 2014/68/EU
- Custom Engineering: Fin density/traverse speed optimized per fluid dynamics
- Quality Assurance:
- Eddy current testing on base tubes
- 3D laser measurement for fin geometry
- Hydrostatic testing at 1.5x design pressure
8. Technical Support & Delivery
- Design Assistance: CFD simulation for optimal fin arrangement
- Lead Time: 25-35 days for standard sizes (MOQ: 500 meters)
- Packaging: VCI-coated, wooden crates for ocean freight
