A335 P11 HFW Serrated Finned Tube with GR.11 Fins - Boiler & HRSG Applications
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
Depends on quantity
Brand:
YUHONG
Product Description
High-Frequency Welded Serrated Finned Tubes Base Tube: ASTM A335 P11 | Fins: Aluminum Alloy GR.11
1. Product Overview
High-frequency welded serrated finned tubes combine ASTM A335 P11 chromium-molybdenum alloy steel base tubes with aluminum alloy GR.11 fins via advanced HFW technology. Designed for extreme conditions (≤600°C), they deliver 30%+ higher thermal efficiency than smooth tubes.
2. Material Composition (ASTM-Compliant)
Table: Chemical Properties
| Component | Base Tube (A335 P11) | Fins (GR.11) |
|---|---|---|
| Carbon (C) | 0.05-0.15% | ≤0.15% |
| Silicon (Si) | 0.50-1.00% | 0.50-1.50% |
| Manganese (Mn) | 0.30-0.60% | ≤0.05% |
| Chromium (Cr) | 1.00-1.50% | - |
| Molybdenum (Mo) | 0.44-0.65% | - |
| Aluminum (Al) | - | ≥98.5% |
| Iron (Fe) | Balance | ≤0.7% |
Key Material Advantages:
- P11 Base Tube: High creep strength (60ksi yield) & oxidation resistance.
- GR.11 Fins: Anti-corrosion (salt spray >1,000hrs), thermal conductivity 200W/m·K.

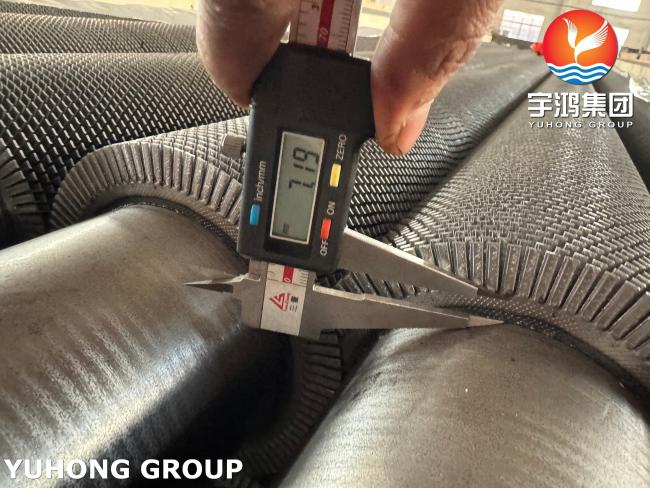

3. Structure & Manufacturing Process
- Base Tube: Seamless, OD 15.88-50.8mm, Thickness 2.0-4.5mm
- Fins: Serrated edge (enhances turbulence), Height 12-20mm, Thickness 0.3-0.5mm
- Embedding Process:
HFW Technology: Fin-to-base bond strength >100MPa (per ASTM E8)
Helical Pitch: 3-10 fins/inch (customizable)
100% Weld Penetration: Ensures zero thermal contact resistance
4. Precision Tolerances
Table: Dimensional Standards (ASME B36.10)
| Parameter | Tolerance |
|---|---|
| Base Tube OD | ±0.10mm |
| Fin Height | ±0.15mm |
| Fin Pitch | ±0.2mm |
| Straightness | ≤1.5mm/m |
5. Performance Advantages
- Heat Transfer: 8-12x surface area expansion vs. bare tubes
- Fouling Resistance: Serrated fins disrupt boundary layers
- Pressure Integrity: P11 base tube rated for 15MPa @ 450°C
- Corrosion Protection: GR.11 forms Al₂O₃ protective layer
6. Application Industries
| Industry | Use Case Examples |
|---|---|
| Power Generation | HRSGs, Air Preheaters, Economizers |
| Petrochemical | Hydrocracker Feed Heaters, Reformers |
| Waste Heat Recovery | Flue Gas Condensers (acid dew point >140°C) |
| Marine | Exhaust Gas Boilers (saltwater corrosion resistance) |
7. Why Choose Our Finned Tubes?
- Certified Quality: EN 10204 3.1, ASME Section II, ISO 9001:2015
- Custom Engineering: Fin density/height tailored to fluid properties (gas/oil/steam)
- Proven Longevity: >60,000 service hours in refineries (API 530 compliant)
- Global Supply: 500+ tons/month capacity, lead time ≤30 days
