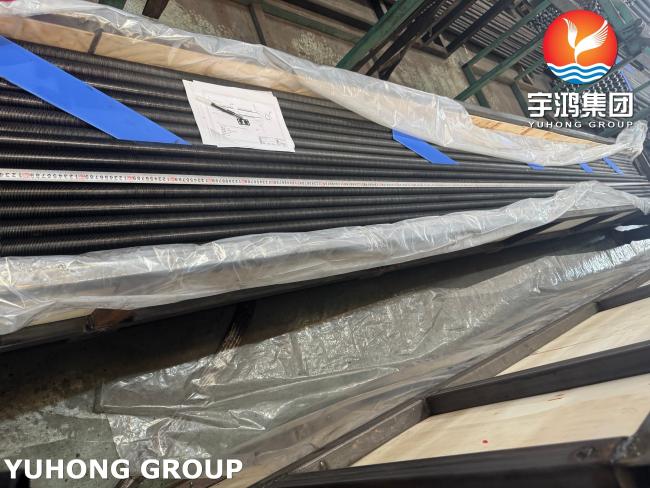

AL1060 Aluminum L-Foot Wound Fin Tube on ASTM A179 Base Pipe
Premium ASTM A179 Carbon Steel Tube with AL1060 Aluminum L-Type Wound Finned Tubes – High-Efficiency Heat Transfer Solutions
As an experienced export sales professional with over 15 years in the heat exchanger and finned tube industry, I specialize in supplying high-quality A179 AL1060 L-type wound finned tubes (also known as L-foot tension wound finned tubes) to global clients in petrochemical, HVAC, and power generation sectors. Our ASTM A179 seamless carbon steel base tubes with AL1060 aluminum fins deliver superior thermal performance, cost-effectiveness, and reliability for air-cooled and gas-to-liquid heat exchange applications. Manufactured under strict ISO 9001 and ASME standards, these tubes are engineered for moderate-temperature environments and offer excellent corrosion resistance on the air side.
Whether you need custom lengths or standard configurations, our A179 AL1060 L-type finned tubes provide an optimal balance of performance and value. Contact us today for competitive pricing, fast lead times (typically 4-6 weeks), and full mill test certificates.
Introduction to ASTM A179 Carbon Steel Tube with AL1060 Aluminum L-Type Wound Finned Tubes
A179 AL1060 L-type wound finned tubes are mechanically enhanced heat transfer components designed to significantly increase the external surface area of tubes used in air-cooled heat exchangers, condensers, and radiators. The base tube is high-quality ASTM A179 seamless low-carbon steel, cold-drawn for excellent ductility and pressure resistance, while the fins are made from commercially pure AL1060 aluminum for outstanding thermal conductivity (approximately 229 W/m·K).
This combination makes ASTM A179 AL1060 L-type finned tubes ideal for applications where the air-side or gas-side heat transfer coefficient is the limiting factor. By helically winding L-shaped aluminum fins under controlled tension, we achieve a secure mechanical bond without welding or adhesives, ensuring long-term stability up to approximately 150–175°C operating temperature.
Our A179 AL1060 wound L-type finned tubes are widely recognized for their cost-effectiveness compared to embedded (G-type) or extruded fins, while still providing reliable heat transfer enhancement (up to 8–12 times the bare tube surface area depending on fin density).
Structure of ASTM A179 AL1060 L-Type Wound Finned Tubes (Base Tube, Fins, and Embedded Tension-Wound Process)
The A179 AL1060 L-type finned tube consists of three key elements:
- Base Tube: ASTM A179 seamless cold-drawn low-carbon steel tube, providing high strength and pressure integrity.
- Fins: AL1060 aluminum strip formed into an L-shaped foot and helically wound around the tube.
- Attachment Process (Tension-Wound L-Foot Embedded Style): The aluminum strip is first bent into an L-profile. It is then tightly wound under tension around the base tube so the L-foot presses firmly against the tube’s outer surface, creating a continuous mechanical bond. The fin ends are secured with galvanized staples or crimping to prevent unwinding. This “embedded-style” tension process ensures excellent contact without grooves, offering partial tube protection from atmospheric corrosion.
This design provides moderate heat transfer efficiency with low production cost and is particularly suited for smooth, vibration-free operating conditions.
Chemical Composition of Base Tube ASTM A179 and Fins AL1060
Chemical Composition of ASTM A179 Seamless Carbon Steel Base Tube
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.06–0.18 |
| Manganese (Mn) | 0.27–0.63 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Silicon (Si) | ≤ 0.25 |
Chemical Composition of AL1060 Aluminum Fins
| Element | Content (%) |
|---|---|
| Aluminum (Al) | ≥ 99.60 |
| Silicon (Si) | ≤ 0.25 |
| Iron (Fe) | ≤ 0.35 |
| Copper (Cu) | ≤ 0.05 |
| Manganese (Mn) | ≤ 0.03 |
| Magnesium (Mg) | ≤ 0.03 |
| Zinc (Zn) | ≤ 0.05 |
| Titanium (Ti) | ≤ 0.03 |
| Vanadium (V) | ≤ 0.05 |
| Others (each) | ≤ 0.03 |
Dimensional Tolerances and Standard Specifications of A179 AL1060 L-Type Wound Finned Tubes
Our ASTM A179 AL1060 L-type finned tubes are available in the following typical ranges (custom sizes available upon request):
| Parameter | Typical Range / Standard | Tolerance |
|---|---|---|
| Base Tube OD | 19.0–51.0 mm (3/8"–2") | ± 0.003" (0.076 mm) |
| Base Tube Wall Thickness | 1.65–3.0 mm | Per ASTM A179 |
| Fin Height | 10.0–16.0 mm (0.394"–0.630") | ± 0.015" on finished OD |
| Fin Thickness | 0.3–0.5 mm (0.012"–0.020") | ± 0.001" (pre-forming) |
| Fins per Inch (FPI) | 8–12 (commonly 10 FPI) | ± 5% over 12" length |
| Tube Length | Up to 18,500 mm (60.8 ft) | <24 ft: ±0.125"; >24 ft: ±0.25" |
| Bare Ends | As specified | ± 1/4" (6.35 mm) |
| Fin OD | As specified | +0 / –0.015" |
Performance Advantages of A179 AL1060 L-Type Wound Finned Tubes
- Superior Heat Transfer: Increases external surface area dramatically, improving overall heat exchanger efficiency in air-side limited applications.
- Cost-Effective Manufacturing: Tension-wound L-foot process is simpler and more economical than grooved embedded or extruded fins.
- Good Corrosion Protection: AL1060 fins and L-foot design partially shield the carbon steel base from atmospheric corrosion.
- Reliable Mechanical Bond: Tension winding ensures firm contact up to 150–175°C without loosening under normal conditions.
- Excellent Thermal Conductivity: Pure aluminum fins transfer heat rapidly.
- Lightweight and Easy Installation: Reduces overall equipment weight compared to heavier fin materials.
- Proven Durability: Suitable for moderate temperatures and smooth operating environments.
Detailed Application Fields of ASTM A179 AL1060 L-Type Wound Finned Tubes
Our A179 AL1060 L-type finned tubes are extensively used in:
- Petrochemical & Refinery Air Coolers: Process fluid cooling in columns, condensers, and overhead systems.
- HVAC and Refrigeration Systems: Air-cooled condensers, evaporators, and radiators.
- Power Generation: Steam condensers, turbine exhaust coolers, and heat recovery units.
- Chemical Processing: Gas-to-air heat exchangers and dryers.
- Marine & Offshore: Seawater or air-cooled heat exchangers (with proper coatings).
- Food & Beverage: Moderate-temperature drying and cooling equipment.
- General Industrial: Boilers, furnaces, and flue gas heat recovery where temperatures remain below 175°C.
Our Expertise and Advantages in Supplying A179 AL1060 L-Type Wound Finned Tubes
With 15+ years of specialized experience exporting finned tubes to over 30 countries, our team guarantees:
- Strict Quality Control: Full traceability, hydrostatic testing, and third-party inspection (SGS, BV) available.
- Customization Expertise: From fin density to tube length and bare ends – we tailor every order.
- Competitive Pricing & Fast Delivery: Direct factory pricing with reliable 4–6 week lead times.
- Technical Support: Free heat transfer calculations, material recommendations, and CAD drawings.
- Proven Track Record: Repeated orders from Fortune 500 clients in oil & gas and power sectors.
Ready to enhance your heat exchanger performance with premium ASTM A179 carbon steel tubes featuring AL1060 aluminum L-type wound fins? Contact me directly for a detailed quotation, samples, or technical consultation. Let’s build efficient, reliable solutions together!
