DIN 86090 CuNiFe 90-10 Elbow C70600 For Shipbuilding, Marine Engineering And Seawater Pipeline Systems
Price:
NEGOTIABLE
MOQ:
100 KGS
Delivery Time:
20-80 days
Brand:
YUHONG
Product Description
DIN 86090 CuNiFe 90-10 Elbow C70600 For Shipbuilding, Marine Engineering And Seawater Pipeline Systems
Description

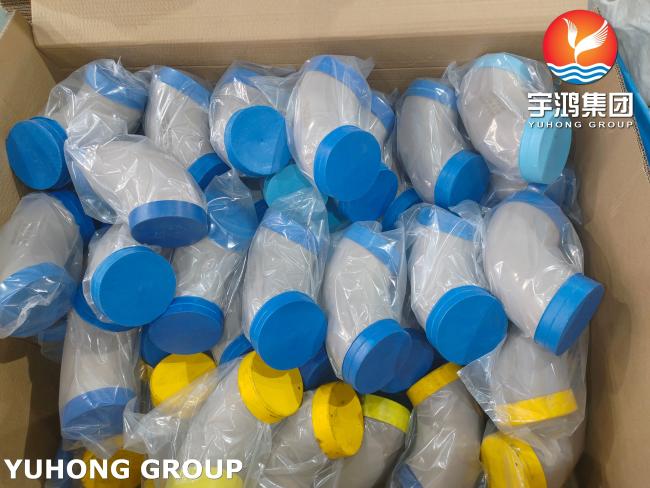

DIN 86090 CuNiFe 90-10 Elbow is specifically designed for shipbuilding, marine engineering, and seawater piping systems.
CuNi 90/10 is a recognized material of choice for marine engineering. In seawater, it forms a dense, stable protective oxide film, effectively resisting uniform corrosion, pitting corrosion, and crevice corrosion.
Therefore, shipbuilding and repair are the core and most widely used areas for this product. Many critical internal piping systems extensively utilize 90/10 copper-nickel alloy elbows.
| Chemical Composition | |
| Element | Composition (wt%) |
| Copper (Cu) | Remaining (approx. 87 – 89) |
| Nickel (Ni) | 9.0 – 11.0 |
| Iron (Fe) | 1.5 – 1.8 |
| Manganese (Mn) | 0.5 – 1.0 |
| Carbon (C) | ≤ 0.05 |
| Lead (Pb) | ≤ 0.01 |
| Sulfur (S) | ≤ 0.005 |
| Phosphorus (P) | ≤ 0.02 |
| Zinc (Zn) | ≤ 0.3 |
| Tin (Sn) | ≤ 0.03 |
| Mechanical Properties | |
| Property | Value |
| Tensile Strength (Rm) | 300 – 400 MPa (43.5 – 58 ksi) |
| Yield Strength (Rp0.2) | 100 – 180 MPa (14.5 – 26 ksi) |
| Elongation (A5) | ≥ 30% |
| Hardness (HB) | 70 – 90 |
| Physical Properties (for reference) | |
| Property | Value |
| Density | 8.90 g/cm³ (0.322 lb/in³) |
| Thermal Conductivity (20°C) | 50 W/(m·K) |
| Modulus of Elasticity | 138 GPa (20 × 10³ ksi) |
| Melting Range | 1100 – 1145°C (2012 – 2093°F) |
Application:
- Seawater Cooling System: Main/auxiliary seawater piping used for cooling engines, generators, and other equipment.
- Ballast Water Piping: Systems used to control a ship's draft and stability.
- Offshore Oil and Gas Platforms: Systems used for seawater transport, firefighting, and process control on the platform.
- Coastal Infrastructure: Intake and drainage systems for coastal power plants and desalination plants.
- Power Plants (including nuclear power): Key piping components in condensers, heat exchangers, and coolers.
- Heat Exchangers and Condensers: Used for connections between tube bundles and the shell.
