Overview of ASTM B163 Incoloy 800H / N08810 Nickel Alloy Tube
ASTM B163 UNS N08810 (Incoloy 800H) is a nickel‑iron‑chromium seamless alloy tube widely used for condensers, heat exchangers, and high‑temperature service. Produced strictly to ASTM B163 standard, it is supplied in solution‑annealed condition for excellent creep strength, thermal stability, and corrosion resistance.
With controlled carbon content and stabilized Al/Ti, it performs reliably at temperatures up to 800°C, resisting oxidation, carburization, and chloride stress corrosion cracking. It features good mechanical properties, uniform wall thickness, and tight dimensional tolerances.
Widely applied in petrochemical reformers, power plant heat exchangers, industrial furnace components, and high‑temperature process piping, it ensures long service life under harsh thermal and corrosive environments.
Key Material Features
-
Excellent high-temperature creep strength and rupture strength at 538℃–800℃
-
Superior oxidation and carburization resistance in high-temperature flue gas environments
-
High resistance to chloride stress corrosion cracking (SCC)
-
Good resistance to nitric acid, organic acid, alkaline solution and mixed corrosive media
-
Stable metallurgical structure, anti-thermal fatigue and long service life

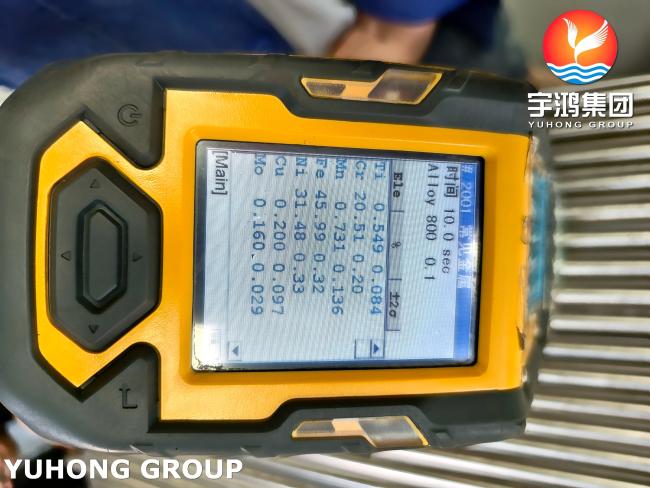

Chemical Composition of Incoloy 800H(N08810) Nickel Alloy Tube
| Element | Specification Range |
|---|---|
| Nickel (Ni) | 30.00 – 35.00 |
| Chromium (Cr) | 19.00 – 23.00 |
| Iron (Fe) | Balance |
| Carbon (C) | 0.05 – 0.10 |
| Manganese (Mn) | ≤ 1.50 |
| Silicon (Si) | ≤ 1.00 |
| Copper (Cu) | ≤ 0.75 |
| Sulfur (S) | ≤ 0.015 |
| Aluminum (Al) | 0.15 – 0.60 |
| Titanium (Ti) | 0.15 – 0.60 |
Mechanical Properties of Incoloy 800H(N08810) Nickel Alloy Tube
| Mechanical Property | Minimum Requirement |
|---|---|
| Tensile Strength | ≥ 448 MPa (65 ksi) |
| Yield Strength (0.2% Offset) | ≥ 172 MPa (25 ksi) |
| Elongation (2 in / 50mm) | ≥ 30% |
| Grain Size | ASTM No.5 or coarser |
Main Applications
-
Heat exchanger tubes, condenser tubes, shell & tube heat exchangers
-
Petrochemical reformer furnace coils, high-temperature heating coils
-
Power plant superheater, reheater and auxiliary cooling system
-
Industrial furnace radiant tubes, heat treatment furnace components
-
Coal chemical, synthetic gas and high-temperature reaction pipeline systems
