ASME SA213 TP316L Tube Bundle, SA350 LF2 CL1N Tube Sheet for Oil&Gas and Chemical Industry
Yuhong Group Co., Ltd. is a leading Chinese manufacturer and supplier of heat exchange equipment and accessories. Main products include shell-and-tube heat exchangers, air coolers, pressure vessels, as well as plain tubes, U-tubes, finned tubes, coil tubes, tube sheets, baffles, channel covers and other heat exchanger components. All products are certified with ASME U, S, PP stamps, ISO 9001:2015 and ISO 14001:2015.
Product Description

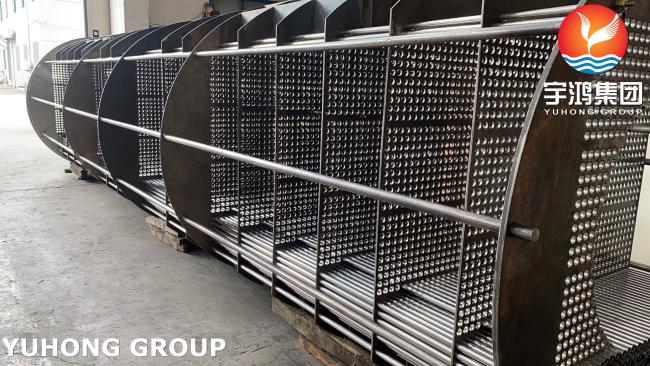

Tube bundle is the core heat exchange component of shell-and-tube heat exchangers, consisting of heat exchanger tubes fixed onto tube sheets. This structure adopts ASME SA213 TP316L (UNS S31603) austenitic stainless steel tubes and ASME SA350 LF2 CL1N low-temperature forged tube sheets. This material combination ensures stable service in media requiring excellent corrosion resistance and good low-temperature impact toughness down to -46°C.
Main Components & Materials
| Component | Material/Standard | Key Feature |
|---|---|---|
| Heat exchanger tubes | ASME SA213 TP316L (Austenitic Stainless Steel, UNS S31603) | Excellent corrosion resistance in chloride-containing media, good resistance to post-weld intergranular corrosion, low carbon content (≤0.035%) |
| Tube sheet | ASME SA350 LF2 CL1N (Low-temperature carbon forging steel) | High impact toughness at temperatures down to -46°C, suitable for cryogenic and low-temperature service |
Technical Specifications
| Parameter | SA213 TP316L (Tube) | SA350 LF2 CL1N (Sheet) |
|---|---|---|
| Tensile Strength (MPa) | ≥485 | 485-655 |
| Yield Strength (MPa) | ≥170 | ≥250 |
| Elongation (%) | ≥35 | ≥22 |
| Impact Toughness (CVN) | Complies with ASME standard | ≥27 Joules at -46°C (Charpy V-notch) |
| Hardness | ≤192 HBW / ≤90 HRB | per customer request |
Tests and Quality Requirements
- Hydrostatic test (по ASME VIII Div.1 / TEMA)
- Radiographic examination (RT)
- Ultrasonic testing (UT)
- Liquid penetrant testing (PT)
- Hardness test (HBW / HRB)
- Mechanical tests (tensile test, impact toughness test at -46°C)
- Chemical analysis (spectrometry)
- Dimensional inspection (tube pitch, clearances, tube sheet perpendicularity)
Advantages and Technical Features
- Corrosion resistance and weldability: TP316L contains 2.0-3.0% molybdenum, which provides excellent resistance to pitting and crevice corrosion in chloride environments.
- High operating temperature and pressure: SA213 TP316L operates from cryogenic temperatures up to +870°C.
- Low-temperature reliability: The baffle plate made of SA350 LF2 CL1N has passed Charpy impact tests at -46°C.
- Full traceability: Melting certificates and third-party inspection reports are provided for tubes and baffles.
- Supply strictly in accordance with customer drawings: Tube pitch, pass number, nozzle diameters and all special specification requirements are available for selection.
Application
- Oil & gas processing and petrochemical industry (process streams with high sulfur, hydrogen and chloride content)
- Liquefied natural gas (LNG) plants and low-temperature gas separation units
- Coking chemical industry and associated petroleum gas cold processing facilities
- Power industry (flue gas waste heat recovery systems)
- Shipbuilding (cooling systems for main and auxiliary engines)
- Chemical and food industry (facilities requiring stainless steel materials in acidic/alkaline environments)
Customized configuration and supporting services
Yuhong Group provides full engineering support ranging from material selection to on-site supervision during commissioning. The following products are available: ASME SA213 TP316L tube bundles and ASME SA350 LF2 CL1N baffles:
- Application of anti-corrosion coating on heat exchanger shells and welded accessories in compliance with NACE or ISO 12944 standards
- Installation of additional instrumentation for temperature and tube bundle vibration monitoring
- Equipment certification in accordance with EAEU standards (TR CU certificate) and obtaining permits from Rostekhnadzor
