A335 P22 HFW Fin Tube for Waste Heat Recovery | Corrosion Resistant 11-13Cr Fin

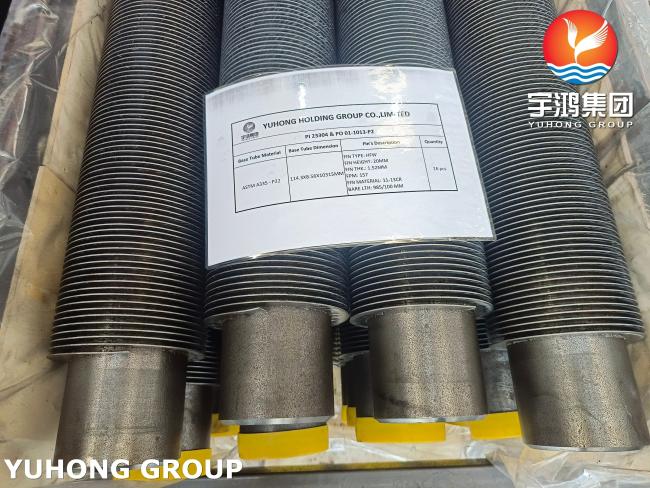

Premium High Frequency Welded Finned Tube: ASTM A335 P22 Base Tube with 11-13Cr Stainless Steel Fin
Comprehensive Introduction to A335 P22 & 11-13Cr HFW Finned Tubes
High Frequency Welded (HFW) finned tubes are critical components in heavy-duty heat exchangers, boilers, and waste heat recovery systems. By combining the high-temperature strength of the ASTM A335 P22 alloy steel base tube with the exceptional corrosion and oxidation resistance of the 11-13Cr ferritic stainless steel fin, this composite tubular product delivers outstanding thermal efficiency and an extended service life in harsh, high-temperature working environments.
Structure and Embedding Process of A335 P22 Base Tube and 11-13Cr Fin
Our HFW finned tubes feature a robust and thermodynamically optimized structure, manufactured through an advanced solid-state welding process:
- Base Tube (ASTM A335 P22): A seamless ferritic alloy-steel pipe designed specifically for high-temperature service. It provides the core structural integrity and pressure containment.
- Fin Material (11-13Cr Stainless Steel): A continuous strip of ferritic stainless steel (typically equivalent to AISI 409/410/410S) that offers excellent resistance to sulfur-bearing gases and oxidation.
- High-Frequency Welding Process: Unlike mechanical embedding or extrusion, the 11-13Cr fin strip is spirally wound onto the A335 P22 base tube while a high-frequency electrical current heats both the base tube surface and the fin edge to a forging temperature. Pressure is then applied to forge them together, creating a true metallurgical bond. This guarantees 100% heat transfer efficiency and zero contact resistance.
Chemical Composition: ASTM A335 P22 Base Tube vs. 11-13Cr Fin
Strict adherence to chemical composition is vital for the performance of high-temperature finned tubes. Below is the certified chemical breakdown of the materials we use:
| Element (%) | Base Tube: ASTM A335 P22 | Fin Strip: 11-13Cr (Grade 410S) |
|---|---|---|
| Carbon (C) | 0.05 – 0.15 | ≤ 0.08 |
| Manganese (Mn) | 0.30 – 0.60 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.025 | ≤ 0.040 |
| Sulfur (S) | ≤ 0.025 | ≤ 0.030 |
| Silicon (Si) | ≤ 0.50 | ≤ 1.00 |
| Chromium (Cr) | 1.90 – 2.60 | 11.5 – 13.5 |
| Molybdenum (Mo) | 0.87 – 1.13 | - |
| Nickel (Ni) | - | ≤ 0.60 |
Dimensional Tolerance Range for A335 P22 + 11-13Cr Finned Tubes
To ensure seamless integration into your heat exchanger bundles, our manufacturing process strictly follows international standards. We offer highly customizable dimensions with tight manufacturing tolerances:
| Parameter | Standard Range (Customizable) | Manufacturing Tolerance |
|---|---|---|
| Base Tube Outer Diameter (OD) | 19.05 mm – 219.1 mm | ± 0.1 mm to ± 0.3 mm (per standard) |
| Base Tube Wall Thickness (WT) | 2.0 mm – 15.0 mm | ± 10% |
| Fin Height | 8.0 mm – 30.0 mm | ± 1.0 mm |
| Fin Thickness | 0.8 mm – 2.5 mm | ± 0.15 mm |
| Fin Pitch (Density) | 3 – 10 FPI (Fins Per Inch) | ± 0.5 mm |
| Bare/Unfinned Ends Length | 20 mm – 150 mm | ± 5.0 mm |
| Overall Tube Length | Up to 25 Meters | ± 5.0 mm |
Key Performance Advantages of A335 P22 & 11-13Cr Finned Tubes
- Exceptional Heat Resistance (A335 P22): The base tube easily withstands continuous operating temperatures up to 600°C (1112°F), making it ideal for power plant superheaters.
- Superior Corrosion Resistance (11-13Cr): The stainless steel fin resists oxidation and high-temperature gas corrosion, significantly reducing fouling and scaling.
- Maximum Heat Transfer Efficiency: The high-frequency welding creates a seamless metallurgical joint, preventing thermal fatigue and eliminating air-gap thermal resistance over time.
- High Mechanical Strength: The welded fins increase the overall rigidity of the A335 P22 tube, providing excellent resistance to mechanical vibrations inside the boiler casing.
Detailed Application Fields for A335 P22 + 11-13Cr Finned Tubes
Due to the synergistic properties of A335 P22 and 11-13Cr, these finned tubes are the preferred choice for heavy industrial applications:
- Power Generation Boiler Systems: Used in Economizers, Superheaters, and Air Preheaters in coal-fired and gas-fired power plants.
- Heat Recovery Steam Generators (HRSG): Highly effective in capturing exhaust gas heat from gas turbines.
- Petrochemical Refineries: Fired heaters, process fluid coolers, and convection sections of cracking furnaces.
- Waste-to-Energy Plants: Enduring the highly corrosive and high-temperature flue gases found in municipal solid waste incinerators.
Why Choose Us for Your A335 P22 and 11-13Cr Finned Tube Projects?
With over a decade of experience in manufacturing industrial heat transfer components, we are your trusted global partner:
- Premium Raw Materials: We source our A335 P22 alloy tubes and 11-13Cr stainless steel coils only from ISO 9001 certified, world-renowned steel mills.
- Strict Quality Control (QC): Every A335 P22 and 11-13Cr finned tube undergoes rigorous testing, including Hydrostatic Testing, Eddy Current Testing (ECT), and Weld Peel Tests, ensuring 100% weld integrity.
- Custom Engineering: Our engineering team can adjust fin pitch, height, and tube length exactly to your thermodynamic drawings.
- Export-Ready Packaging: We use steel-framed wooden crates with internal desiccant and anti-rust wrapping, guaranteeing your A335 P22 and 11-13Cr finned tubes arrive in pristine condition, regardless of ocean transit times.
