SA-350 LF2 Self-Reinforced Nozzle for Pressure Vessels

Product Overview

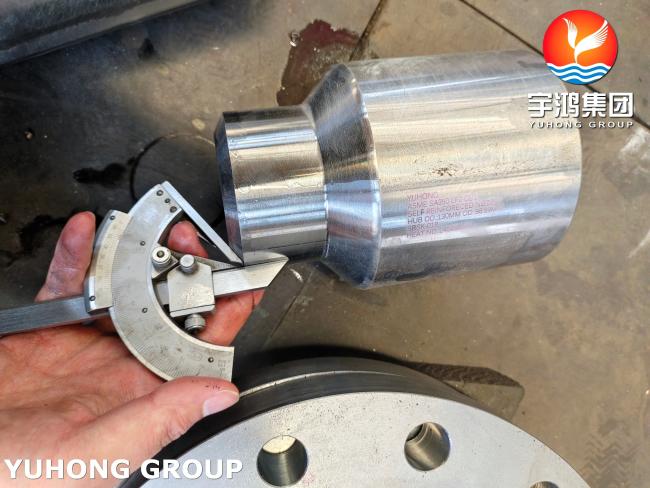

SA-350 LF2 Self-Reinforced Nozzle is a forged and machined nozzle component designed for pressure vessel connections and other industrial equipment requiring an integrated reinforcement structure.

Manufactured from ASTM A350 LF2 carbon steel forgings, this nozzle can be supplied according to customer drawings, specified dimensions, connection requirements, and project technical specifications. Its self-reinforced configuration integrates the reinforcement into the nozzle geometry, potentially eliminating the need for a separate reinforcement pad where permitted by the applicable design code.

YUHONG supplies self-reinforced nozzles for pressure vessel fabrication, heat exchanger assemblies, and oil and gas processing equipment, subject to project requirements and material availability.

Product Specifications

Key Features of SA-350 LF2 Self-Reinforced Nozzles

• Integrated Reinforcement Structure

The nozzle is designed with an integrated reinforcement profile. Depending on the equipment design and applicable code calculations, this configuration can reduce the need for a separate reinforcement pad and simplify certain fabrication operations.

• Low-Temperature Carbon Steel Material

ASTM A350 LF2 is a carbon steel forging grade used for components requiring specified mechanical properties at low temperatures. The applicable material class, impact test temperature, acceptance criteria, and heat treatment condition should be confirmed against the purchase specification.

• Drawing-Based Manufacturing

Self-reinforced nozzles often have application-specific dimensions and geometries. Manufacturing can be based on approved drawings, including the required bore, neck dimensions, overall height, wall thickness, and connection details.

• Machined Connection Surfaces

Machining requirements can be specified for the bore, contact surfaces, weld preparation, and other functional areas. Final dimensions and tolerances should follow the approved drawing and applicable technical requirements.

Typical Applications

• Pressure Vessels: Nozzle connections for process vessels and pressure-containing equipment.

• Heat Exchangers: Connection components for shell-and-tube heat exchanger fabrication, where the design requires an integrated reinforcement profile.

• Oil and Gas Processing: Nozzle assemblies used in process equipment and piping connections.

• Petrochemical Plants: Components for industrial vessels and process systems.

• Industrial Equipment: Custom nozzle connections manufactured to project-specific drawings.

Manufacturing and Quality Requirements

The manufacturing and inspection requirements for SA-350 LF2 self-reinforced nozzles depend on the purchase order, approved drawings, and applicable design code. Typical requirements may include:

• Verification of material grade and heat number traceability.

• Chemical composition and mechanical property testing according to the specified material standard.

• Heat treatment and impact testing when required by the applicable specification.

• Dimensional inspection against approved drawings.

• Visual examination and additional nondestructive examination where specified.

• Material test certificates and inspection documentation as required by the purchase order.

The inspection scope and acceptance criteria should be agreed upon before production.

Why Choose YUHONG for Self-Reinforced Nozzles?

YUHONG supplies industrial piping components and pressure equipment materials for project-based applications. Self-reinforced nozzles can be reviewed according to the required material grade, dimensions, design details, inspection scope, and documentation requirements.

To support technical evaluation and quotation, buyers are encouraged to provide the following information:

• Material grade and applicable material standard.

• Approved dimensional drawing.

• Design code and pressure-temperature requirements, where applicable.

• Required testing, inspection, and certification.

• Quantity and requested delivery schedule.

Frequently Asked Questions

1. What is an SA-350 LF2 self-reinforced nozzle?

It is a nozzle component made from ASTM A350 LF2 material and designed with an integrated reinforcement profile. Its suitability depends on the equipment design and applicable code requirements.

2. What is ASTM A350 LF2 used for?

ASTM A350 LF2 covers carbon and low-alloy steel forgings intended for piping components requiring notch toughness testing. The specified material class and test requirements should be confirmed in the purchase specification.

3. Does a self-reinforced nozzle require a reinforcement pad?

Not necessarily. The integrated geometry may eliminate the need for a separate pad when the applicable design calculations and code requirements permit it. The final decision depends on the design conditions and approved engineering documents.

4. Can self-reinforced nozzles be manufactured to custom dimensions?

Yes. Custom dimensions and connection details can be evaluated according to approved customer drawings and technical specifications.

5. What inspection documents can be supplied?

Material certificates, dimensional inspection records, and additional test reports may be supplied according to the agreed purchase order requirements. EN 10204 Type 3.1 certification should be specified when required.

6. What information is required for a quotation?

Please provide the material specification, approved drawing, quantity, applicable design requirements, inspection scope, and requested delivery schedule.

Request a Quotation

Contact YUHONG with your drawings and project specifications for a technical review and quotation for SA-350 LF2 self-reinforced nozzles.
