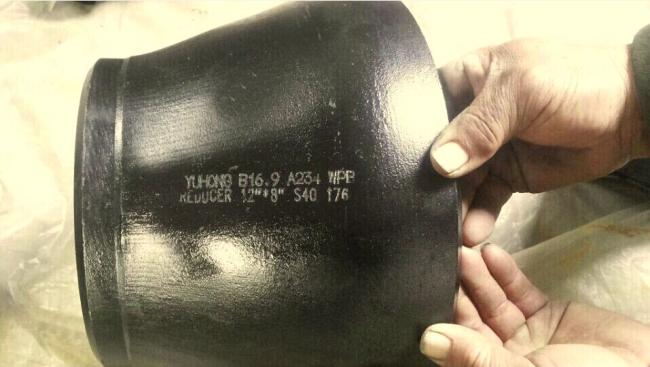

REDUCER Butt Weld Fittings SCH20 , SCH30 , SCH60 , SCH80 , SCH120

Products information:
Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer
Standard

• ASTM / ASME SB 336.
• UNS 10276 (HASTELLOY C 276 Reducer)
• UNS 2200 (NICKEL 200 Reducer),
• UNS 2201 (NICKEL 201 Reducer),
• UNS 4400 (MONEL 400 Reducer),
• UNS 8020 (ALLOY 20 Reducer),
• UNS 8825 (INCONEL 825 Reducer),
• UNS 6600 (INCONEL 600 Reducer),
• UNS 6601 (INCONEL 601 Reducer),
• UNS 6625 (INCONEL 625 Reducer),

Value Added Services

• Hot Dip Galvanizing
• Epoxy Coating

Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B

Carbon Steel Pipe Fitting - Concentric & Eccentric Reducers



Standard				Extra Strong
Nominal Pipe Size	Length	Weight in Pounds		Nominal Pipe Size	Length	Weight in Pounds
1 1/4 x 1/2	2	0.42		1 1/4 x 1/2	2	0.53
1 x 3/4	2	0.36		1 x 3/4	2	0.43
1 x 1/2	2	0.36		1 x 1/2	2	0.42
3/4 x 1 1/2	1	0.21		3/4 x 1 1/2	1.5	0.25
1 1/2 x 1 1/4	2.5	0.65		1 1/2 x 1 1/4	2.5	0.78
1 1/2 x 1	2.5	0.57		1 1/2 x 1	2.5	0.72
1 1/2 x 3/4	2.5	0.56		1 1/2 x 3/4	2.5	0.65
1 1/2 x 1/2	2.5	0.56		1 1/4 x 1/2	2.5	0.65
1 1/4 x 1	2	0.48		1 1/4 x 1	2	0.57
1 1/4 x 3/4	2	0.42		1 1/4 x 3/4	2	0.53
1 1/4 x 1/2	2	0.42		2 1/2 x 2	3.5	2.1
2 1/2 x 2	3.5	1.6		2 1/2 x 1 1/2	3.5	1.9
2 1/2 x 1 1/2	3.5	1.5		2 1/2 x 1 1/4	3.5	1.7
2 1/2 x 1 1/4	3.5	1.4		2 1/2 x 1	3.5	1.5
2 1/2 x 1	3.5	1.3		2 1/2 x 12 x 1 1/2	3	1.2
2 x 1 1/2	3	0.94		2 x 1 1/4	3	1.1
2 x 1 1/4	3	0.88		2 x 1	3	1
2 x 1	3	0.81		2 x 3/4	3	0.94
2 x 3/4	3	0.74		3 1/2 x 3	4	4.1
3 1/2 x 3	4	2.8		3 1/2 x 2 1/2	4	3.7
3 1/2 x 2 1/2	4	2.7		3 1/2 x 2	4	3.5
3 1/2 x 2	4	2.6		3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/2	4	2.6		3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/4	4	2.5		3 1/2 x 1 1/4	4	3.3
3 x 2 1/2	3.5	2.2		3 x 2 1/2	3.5	2.8
3 x 2	3.5	2		3 x 2	3.5	2.6
3 x 1 1/2	3.5	1.9		3 x 1 1/2	3.5	2.4
3 x 1 1/4	3.5	1.8		3 x 1 1/4	3.5	2.3
3 x 1	3.5	1.7		3 x 1	3.5	2.2
4 x 3 1/2	4	3.5		4 x 3 1/2	4	4.9
4 x 3	4	3.3		4 x 3	4	4.7
4 x 2 1/2	4	3.2		4 x 2 1/2	4	4.6
4 x 2	4	3.1		4 x 2	4	4.3
4 x 1 1/2	4	3		4 x 1 1/2	4	4.2
4 x 1 1/4	4	3		4 x 1 1/4	4	4.1
4 x 1	4	2.8		4 x 1	4	4
5 x 4	5	5.5		5 x 4	5	7.5
5 x 3 1/2	5	5.3		5 x 3 1/2	5	6.9
5 x 3	5	5.1		5 x 3	5	6.3
5 x 2 1/2	5	4.8		5 x 2 1/2	5	6.1
5 x 2	5	4.7		5 x 2	5	6
6 x 5	5.5	7.6		6 x 5	5.5	11.5
6 x 4	5.5	7.4		6 x 4	5.5	10.7
6 x 3 1/2	5.5	7.1		6 x 3 1/2	5.5	10
6 x 3	5.5	6.9		6 x 3	5.5	9.7
6 x 2 1/2	5.5	6.6		6 x 2 1/2	5.5	9.1
6 x 2	5.5	6.5		6 x 2	5.5	8.6
8 x 6	6	12.3		8 x 6	6	18.8
8 x 5	6	11.5		8 x 5	6	17.6
8 x 4	6	10.8		8 x 4	6	17
8 x 3 1/2	6	10.6		8 x 3 1/2	6	15.9
8 x 3	6	9.8		8 x 3	6	15
10 x 8	7	22.1		10 x 8	8	29.4
10 x 6	7	20.7		10 x 6	7	28.3
10 x 5	7	19.5		10 x 5	7	26.9
10 x 4	7	18.4		10 x 4	7	24.2
12 x 10	8	32.4		12 x 10	8	41.5
12 x 8	8	30.5		12 x 8	8	38.6
12 x 6	8	29.5		12 x 6	8	37.4
12 x 5	8	27.8		12 x 5	8	36.3
12 x 4	8	26.2		12 x 4	8	34.7
14 x 12	13	63.1		14 x 12	13	81
14 x 10	13	61.4		14 x 10	13	76.7
14 x 8	13	60		14 x 8	13	74.6
14 x 6	13	59.2		14 x 6	13	72.3
16 x 14	14	75.4		16 x 14	14	98
16 x 12	14	72.7		16 x 12	14	95.8
16 x 10	14	71.1		16 x 10	14	93.3
16 x 8	14	69.4		16 x 8	14	91.1
16 x 6	14	67.4		16 x 6	14	89.8
18 x 16	15	87.3		18 x 16	15	118
18 x 14	15	86		18 x 14	15	117
18 x 12	15	84.8		18 x 12	15	115
18 x 10	15	83.7		18 x 10	15	113
20 x 18	20	123		20 x 18	20	162
20 x 16	20	121		20 x 16	20	159
20 x 14	20	119		20 x 14	20	157
20 x 12	20	118		20 x 12	20	155
20 x 10	20	117		20 x 10	20	152
24 x 20	20	156		24 x 20	20	201
24 x 18	20	153		24 x 18	20	197
24 x 16	20	150		24 x 16	20	194
24 x 14	20	147		30 x 24	24	315
24 x 12	20	144		30 x 20	24	315
24 x 10	20	141		30 x 18	24	315
30 x 24	24	315		36 x 30	24	379
30 x 20	24	315		36 x 24	24	379
30 x 18	24	315		36 x 20	24	379
36 x 30	24	379		42 x 36	24	443
36 x 24	24	379		42 x 30	24	443
36 x 20	24	379		42 x 24	24	443
42 x 36	24	443		48 x 42	28	525
42 x 30	24	443		48 x 36	28	525
42 x 24	24	443		48 x 30	28	525
48 x 42	28	525
48 x 36	28	525
48 x 30	28	525
