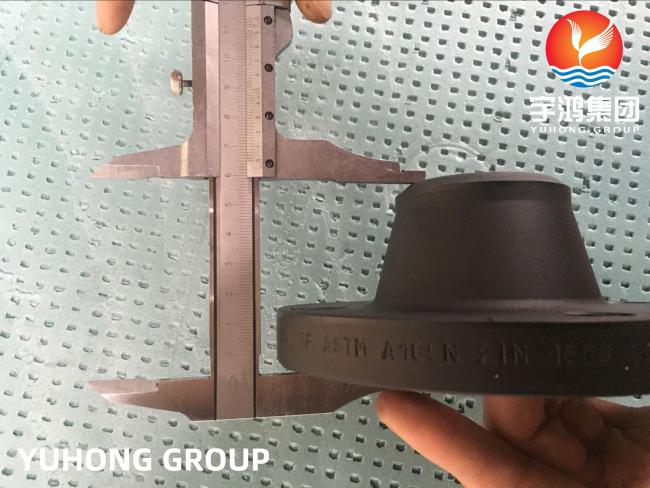

ASTM A105/A105N CARBON STEEL WELDING NECK RAISED FACE FLANGE
ASTM A105/A105N CARBON STEEL WELDING NECK RAISED FACE FLANGE
Carbon Steel ASTM A105 Weld Neck Flange, which used in pressure systems operating between moderate to high-temperature services. We manufacture them under ASTM specification that covers carbon steel forged and seamless piping components. Our Flanges offer excellent resistance to pitting, crevice corrosion, and stress corrosion cracking due to chlorides in the environments. They are capable of handling heavy loads and high pressure. They are made with upper surface hardness and have good machinability.
ASTM A105 CARBON STEEL WELD NECK FLANGES CHEMICAL COMPOSITIO
|
Grade |
C |
Mn |
P |
S |
Si |
Cu |
Ni |
Cr |
Mo |
V |
|
ASTM A105 |
≤0.35 |
0.60-1.05 |
≤0.35 |
≤0.40 |
0.10-0.35 |
≤0.40 |
≤0.40 |
≤0.30 |
≤0.12 |
≤0.08 |
MECHANICAL PROPERTIES OF ASTM A105 CARBON STEEL WNRF FLANGES
|
Tensile Strength min. |
Yield Strength min. |
Elongation min. |
Reduction of Area, min. |
Hardness |
||
|
MPa |
ksi |
MPa |
ksi |
% |
% |
HBW |
|
485 |
70 |
250 |
36 |
22 |
30 |
137-187 |
ASTM A 105 Carbon Steel Weld Neck Flanges Application Industries:
1.Mining Industries
2.Transport Industries- Rail and Road
3.Construction Industries / Building Systems
4.Manufacturing Industries
5.Agriculture Industries
6.Energy Industries
7.Water Industries
8.Automotive Industries
9.Ship Building Industries
10.Nuclear Power Plant
11.Paper & Pulp Industries
12.Sugar Industries
13.Engineering Cement Industries
14.Petro-Chemical Industries
15.Food Industries
16.Oil & Gas Industries
17.Chemical & Pharmaceutical Industries
