ASME SA213/ SA213M TP316L/TP304L STAINLESS STEEL SEAMLESS U BEND TUBE​

Features :

• 'U' bending is done by cold working process.
• 'U' bending is done to the required radius as per customer drawings.
• The bend portion and six inch leg is stress relieved by resistance heating.
• Inert gas (Argon) is passed through it at the required flow rate to avoid oxidation in ID.
• The radius is checked for its OD and wall thinning with the recommended specification.
• The physical properties and micro-structure is checked at three different position.
• Visual inspection for waviness and cracks is done with Dye Penetrant Test.
• Each tube is then hydro tested at the recommended pressure to check for leakage.
• Cotton ball test is done to check the ID cleanliness of the tube.
• Thereafter pickled, dried, marked and packed.
• All procedure is strictly followed as per TEMA "C" and ASTM A-688.

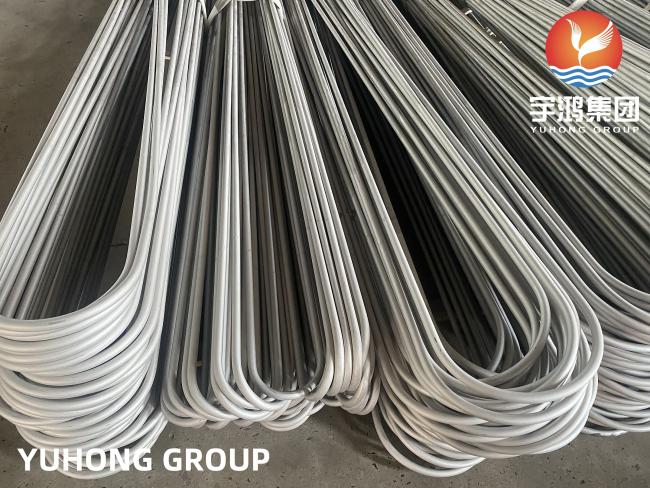

U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipment on the basis of
Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and
critical felds---Nuclear And Petrochemical Machine Building.
YUHONG SPECIAL STEEL Start to Produce U Bending Tube Since 2006, Up to now already supply more than
30000 tons Stainless Steel U Bend Tube to 35 countries.

The U-Bend Tube Comply With The Following Standards:
1. ASTM A688/ASME SA688
2. ASTM A803/ASME SA803
3. ASTM A556/ASME SA556

Steel Grade:
