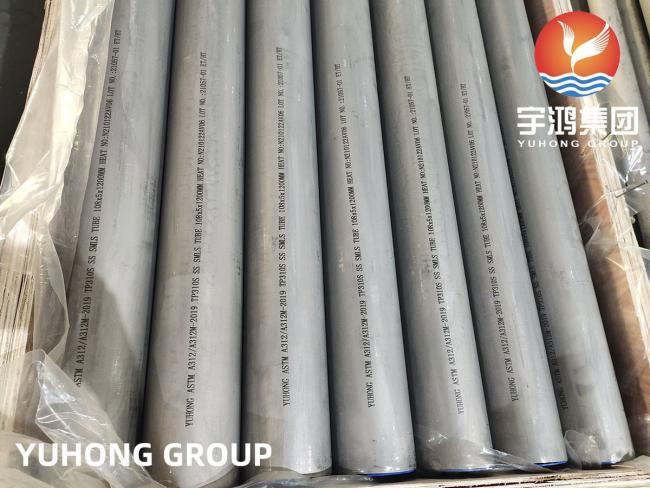

ASTM A312 TP310S (UNS S31008) Stainless Steel Seamless Pipe For Chemical Industry
ASTM A312 TP310S (UNS S31008) Stainless Steel Seamless Pipe For Chemical Industry
ASTM A312 TP310S stainless steel is a material which is used for general corrosive services and high-temperature services for long-term periods of time. The composition of the ASTM A312 TP310S material includes carbon, manganese, silicon, phosphorus, sulfur and chromium and nickel. TP310S(UNS S31008) is used when the application environment involves moist corrodents in a temperature range lower than high-temperature service. The lower carbon content of TP310S reduces its high temperature strength compared to TP310. Our YUHONG GROUP is professional in ASTM A312 stainless steel seamless / welded pipes for almost 40 years.
Specification:
| Specification | ASTM A312, ASME SA312 |
| Grades | TP304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 321, 321H, 347, 347H, 904L, Etc. |
| Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
| Outer Diameter Size | Seamless - 1/2" To 18" Welded / ERW- 1" To 16" EFW - 8" To 110" |
| Wall Thickness | Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 6 Meters, Single Random Length, Double Random Length And Customized. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | N |
| TP310S | min. max. |
- 0.08 |
- 2.00 |
- 1.50 |
- 0.045 |
- 0.030 |
24.0 26.0 |
19.0 22.0 |
Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max |
||||
| TP310S | 515 | 205 | 40 | 95 | 217 |
Applications:
Food Processing Equipments
Chemical Containers Plants
Heat Exchangers
Water Treatment System
Boilers, Condensers
Petrochemical Industries
Offshore Equipments
Marine Systems
