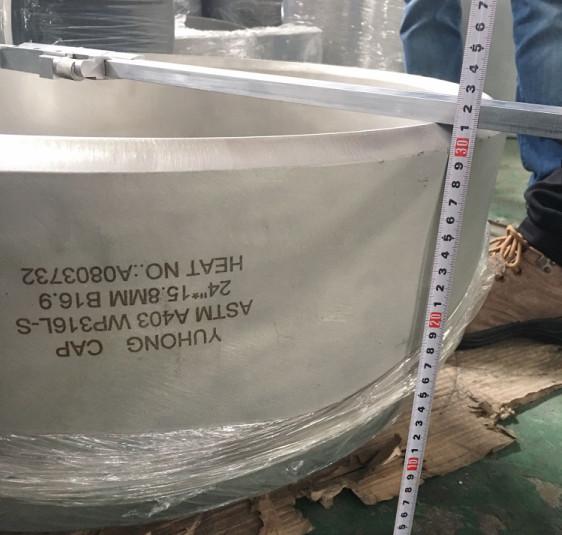

ASTM A403 WP316L-S STAINLESS STEEL BUTT WELD FITTINGS ASME B16.9 END CAP
Price:
discussion
MOQ:
1PC
Delivery Time:
according to quantity
Brand:
YUHONG GROUP
Product Description
END CAP, ASTM A403 WP316L-S DUPLEX STEEL BUTT WELD FITTINGS ASME B16.9
Stainless/Duplex Steel Pipe Fitting - Cap
Standard
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Length | Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1 | 40 | 0.08 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.25 | 40 | 0.14 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.21 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.5 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.5 | 40 | 0.54 |
| 2 | 2.38 | 2.067 | 0.154 | 1.5 | 40 | 0.8 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 1.5 | 40 | 1 |
| 3 | 3.5 | 3.068 | 0.216 | 2 | 40 | 1.7 |
| 3 1/2 | 4 | 3.548 | 0.226 | 2.5 | 40 | 2.3 |
| 4 | 4.5 | 4.026 | 0.237 | 2.5 | 40 | 2.8 |
| 5 | 5.56 | 5.047 | 0.258 | 3 | 40 | 4.6 |
| 6 | 6.62 | 6.065 | 0.28 | 3.5 | 40 | 6.9 |
| 8 | 8.62 | 7.981 | 0.322 | 4 | 40 | 11.8 |
| 10 | 10.75 | 10.02 | 0.365 | 5 | 40 | 20.8 |
| 12 | 12.75 | 12 | 0.375 | 6 | * | 30.3 |
| 14 | 14 | 13.25 | 0.375 | 6.5 | 30 | 36.5 |
| 16 | 16 | 15.25 | 0.375 | 7 | 30 | 43.5 |
| 18 | 18 | 17.25 | 0.375 | 8 | * | 57 |
| 20 | 20 | 19.25 | 0.375 | 9 | 20 | 75.7 |
| 24 | 24 | 23.25 | 0.375 | 10.5 | 20 | 101 |
| 30 | 30 | 29.24 | 0.38 | 10.5 | * | 137 |
| 36 | 36 | 35.24 | 0.38 | 10.5 | * | 175 |
| 42 | 42 | 41.24 | 0.38 | 12 | * | 229 |
| 48 | 48 | 47.24 | 0.38 | 13.5 | * | 350 |
Extra Strong
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Length | Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.546 | 0.147 | 1 | 80 | 0.1 |
| 3/4 | 1.05 | 0.742 | 0.154 | 1.25 | 80 | 0.16 |
| 1 | 1.315 | 0.957 | 0.179 | 1.5 | 80 | 0.28 |
| 1 1/4 | 1.66 | 1.278 | 0.191 | 1.5 | 80 | 0.48 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 1.5 | 80 | 0.67 |
| 2 | 2.375 | 1.939 | 0.218 | 1.5 | 80 | 0.92 |
| 2 1/2 | 2.875 | 2.323 | 0.276 | 1.5 | 80 | 1.3 |
| 3 | 3.5 | 2.9 | 0.3 | 2 | 80 | 2.1 |
| 3 1/2 | 4 | 3.364 | 0.318 | 2.5 | 80 | 3 |
| 4 | 4.5 | 3.826 | 0.337 | 2.5 | 80 | 3.5 |
| 5 | 5.563 | 4.813 | 0.375 | 3 | 80 | 5.8 |
| 6 | 6.625 | 5.761 | 0.432 | 3.5 | 80 | 9.3 |
| 8 | 8.625 | 7.625 | 0.5 | 4 | 80 | 16 |
| 10 | 10.75 | 9.75 | 0.5 | 5 | 60 | 26 |
| 12 | 12.75 | 11.75 | 0.5 | 6 | * | 38 |
| 14 | 14 | 13 | 0.5 | 6.5 | * | 47 |
| 16 | 16 | 15 | 0.5 | 7 | 40 | 57 |
| 18 | 18 | 17 | 0.5 | 8 | * | 78 |
| 20 | 20 | 19 | 0.5 | 9 | 30 | 100 |
| 24 | 24 | 23 | 0.5 | 10.5 | * | 145 |
| 30 | 30 | 29 | 0.5 | 10.5 | 20 | 634 |
| 36 | 36 | 35 | 0.5 | 10.5 | 20 | 913 |
| 42 | 42 | 41 | 0.5 | 12 | * | 1,300 |
| 48 | 48 | 47 | 0.5 | 13.5 | * | 1,675 |
