FORGED STEEL FITTINGS SWAGED NIPPLES F316L 3000# MSS SP-95 B16.11

Name: FORGED STEEL FITTINGS SWAGED NIPPLES F316L 3000# MSS SP-95 B16.11
Brand: Yuhong Group Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 1PC

Delivery Time: 7DAYS

Brand: YUHONG

Product Description

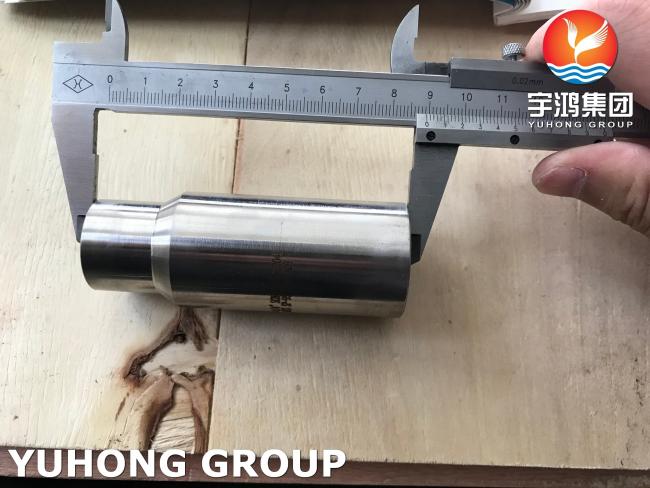

FORGED STEEL FITTINGS SWAGED NIPPLES F316L 3000# MSS SP-95 B16.11

The function of swage nipple is to change pipe’s diameter and to connect two pipes of different sizes.The swage nipple is divided into concentric swage nipple and eccentric swage nipple.Concentric swage nipple is mainly used for vertical pipeline;eccentric swage nipple is mainly used in horizontal pipelines.Common thread swage nipple,divided into double-headed outer thread,single-headed outer thread,flat-headed outer thread.

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Products Socket Reducer Inserts

Product Pictures and Drawings


Type1		Type2

Dimensional Data

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

			Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting Type	A	B	E	Fitting Type	A	B	E	Fitting Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.850	0.690	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.850	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.060	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.060	0.690	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.060	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.690	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.670	1.330	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.670	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.670	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.670	0.690	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.670	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.910	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.910	1.330	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.910	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.910	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.910	0.690	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.330	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-
