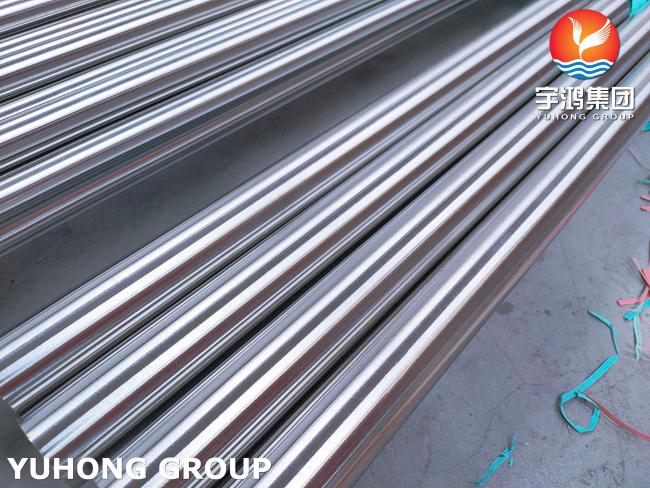

STAINLESS STEEL ROUND BAR ASTM A276/ A484 AISI304 COLD DRAWN,H11

STAINLESS STEEL ROUND BAR ASTM A276/ A484 AISI304,COLD DRAWN,H11

Stainless Steel Angle Bar

Grade:201,304,304L,316,316L,321,410,420,430,431,630,631,duplex stainless steel 2205,2207,F51,F60,329J1,JS2101,JS2304 and JS2003 etc

Standard:GB,SUS,STS,AISI,DIN etc

Length Range and allowable variation:

Normal Length is 4,5,6m,Length allowable variation ≤+40mm

Straightness variation:

Straightness≤4mm/m,max Warp is 0.40% of specified length

Right Angle allowable variation:90°±2°

Weight allowable variation:

For Weight permeter ≤9.0 kg , Weight allowable variation is ≤±7.5%

For Weight permeter ≥9.0 kg ,Weight allowable variation is ≤±4.5%

Side allowable variation:

For side ≤150 mm , Side allowable variation is ≤±3mm

For side ≥150 mm , Side allowable variation is ≤±5mm

Surface Condition:Austenitic stainless steel angle bar is supplied withHot-rolled ,pickled solution heat treatment state , Ferrite stainless steel angle bar is supplied with annealled state or according to customer’s request
