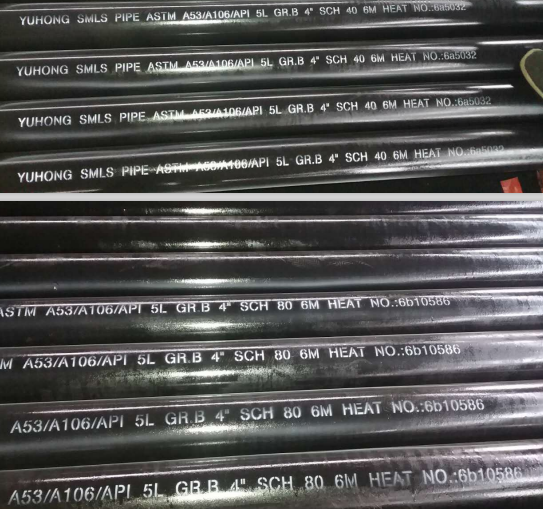

Api 5l Gr B Od 4 Inch 6000MM Seamless Stainless Steel Tube

We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

Scope

ANSI / API 5L specifies the manufacture of two product levels (PSL1 and PSL2) of seamless and welded steel pipe for the use of a pipeline in the transportation of petroleum and natural gas. For material use in a sour service application, refer to Annex H; for offshore service application, refer to Annex J of API 5L 45th Edition.

API 5L pipes may be classified according to the following criteria:

• execution: seamless or welded (seamless pipes may be used up to 24 inches, LSAW above 24 inches, ERW up to 20 inches)
• specification level (API PSL1, PSL2): PSL1 is a standard quality used for pipelines, whereas PSL2 sets more stringent chemical, mechanical properties, and testing requirements
• surface finish: black, varnish painted, anti-rust oil, galvanized, coated externally (3PL) and/or lined internally
• ends types: plain, beveled, threaded ends

The main advantages of API 5L pipe are:

• Resistance to cracking forces that may propagate in long pipelines
• Sour service suitability
• Rather inexpensive and long service life (at least grades B, X42)

Size Range

API 5L pipes are available in dimensions between from 2 to 28″ (seamless execution) and up to 80″ in welded execution (generally, LSAW i.e. longitudinal submerged arc welding).

The API 5L and ASME B36.10 pipe dimensions and weights are, in fact, identical.

Process

Ingots, blooms, billets, coils or plates used for the manufacture of pipe shall be made via basic oxygen, electric furnace or open hearth in combination with a ladle refining process. For PSL2, the steel shall be killed and melted according to a fine grain practice. Coil or plate used for PSL2 pipe shall not contain any repair welds.

Application:Tube for conveying gas, water, and oil in both and natural gas industries etc.

Casing:Casing is a large diameter pipe that serves as the structural retainer for the walls of oil and gas

wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface

formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take

place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to

the surface after drilling is complete. It is made to withstand the pressure generated from the extraction

process. Tubing is manufactured in the same way as casing, except that an additional process known as

"upsetting" is applied to thicken the pipes.

Application:

Tube for conveying gas, water, and oil in both and natural gas industries etc.

Casing:Casing is a large diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.
