ASTM A240 F904L UNS N08904 AWWA C207 Steel Flanges
ASTM A240 F904L /UNS N08904 AWWA C207 SO FF , STAINLESS STEEL FLANGES
We are one of the biggest projects pipeline products supplier in China , Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Scope:
ASTM A240 covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications. The steel shall conform to the requirements as to chemical composition specified. The material shall conform to the mechanical properties specified.
Our Grade 904L SS Flanges stands up tremendously well to chlorides in the atmosphere for crevice corrosion andlow pitting, in addition to stress corrosion cracking. These Grade 904L Stainless Steel Flanges merges copper andmolybdenum content in the company of iron content for extremelyaugmented resistance to reducing acids such as sulphuric acid. Made up from top quality of raw materials, these products comply with all industrial quality standards.With several sizes, lengths and dimensional specifications, these UNS N08904 Flangesare also customized as per customer requirements at market leading prices.
Grades:
| Type | Raw Material |
| 304 | 18-8 Chromium Nickel Austenitic Stainless Steel |
| 316L | Low carbon, Chromium Nickel Molybdenum Austenitic Stainless Steel |
| 321 | Titanium Stabalized 18-8 Chromium Nickel Austenitic Stainless Steel |
| 410 | 12% Straight Chromium Marensitic Stainless steel |
| 904L | High Nickel Molybdenum Super Austenitic Stainless Steel |
| UNS S31803 | Ferritic/Austenitic Duplex Stainless Steel |
| UNS S32750 | Ferritic/Austenitic Super Duplex Stainless Steel |
| UNS S31254 | High Moly Austenitic Stainless Steel |

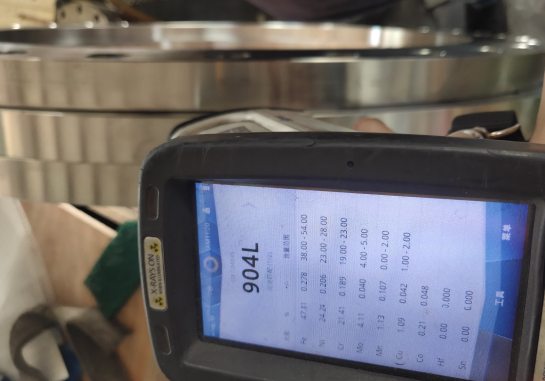

Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 904L | Min | - | - | - | - | - | 19 | 4 | 23 | 1 |
| max | 0.2 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
Mechanical Composition:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | Brinell (HB) |
| 904L | 490 | 220 | 35 | 70-90 typical | - |
Product Features:
- High corrosion resistance in tough environments
- Accurate dimensions
- Can sustain high pressure & temperature load
- Lower intergranular precipitation
- Smooth transition from flange thickness to pipe
- Ensure excellent stress distribution
- Excellent high temperature oxidation resistance
Product Usage & Application :
- Useful in Paper & Pulp Companies
- Useful in High Pressure Applications
- Useful in Oil and Gas Industry
- Useful in Chemical Refinery
- Useful in Pipeline
- Useful in High Temperature Application
- Useful in Water Pipe Line
- Useful in Nuclear Power Plants
- Useful in Food Processing and Dairy Industries
- Useful in Boiler & Heat Exchangers
