ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow

Price Negotiable

Price: NEGOTIABLE

MOQ: 1

Delivery Time: 20-80

Brand: YUHONG

Product Description

ASTM B564 Monel 400 Steel Pipe Fittings 2 90 degree elbow

We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

Monel 400 FORGED FITTINGS, ASTM B564 UNS N04400 3000# 90° ELBOW MSS SP-95 ASME B16.11

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel.

Product Pictures and Drawings


Type1		Type2

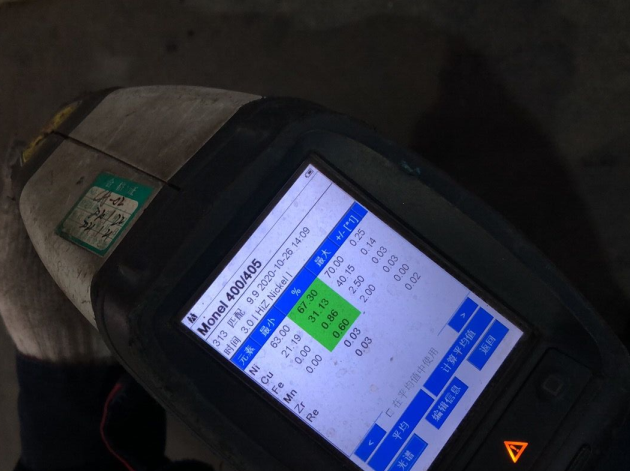

Monel 400 Chemical Composition

Chemical Requirements
Monel 400	Ni	C	Mn	S	Si	Cu	Fe
Max		0.3	2	0.024	0.5	34	2.5
Min	63					28

Monel 400 Mechanical Properties

Mechanical Property Requirements
Monel 400	Ultimate Tensile	Yield Strength (0.2% OS)	Elong. in 2 in. or 50mm (or 4D), min.,%	R/A	Hardness
Cold Worked/SR
Min	87 KSi	60 KSi	20B
Max
Min	600 MPa	415 MPa
Max
Hot Worked/SR
Min	80 KSi	40 KSi	30D
Max
Min	552 MPa	276 MPa
Max

Dimensional Data
Socket weld reducer Inserts availbale in class 3000, 6000 and 9000
			Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting	A	B	E	Fitting	A	B	E	Fitting	A	B	E
Nominal Pipe Size	C	D	Type	A	B	E	Type	A	B	E	Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.85	0.69	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.85	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.06	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.06	0.69	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.06	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.69	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.67	1.33	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.67	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.67	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.67	0.69	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.67	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.91	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.91	1.33	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.91	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.91	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.91	0.69	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.33	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-
