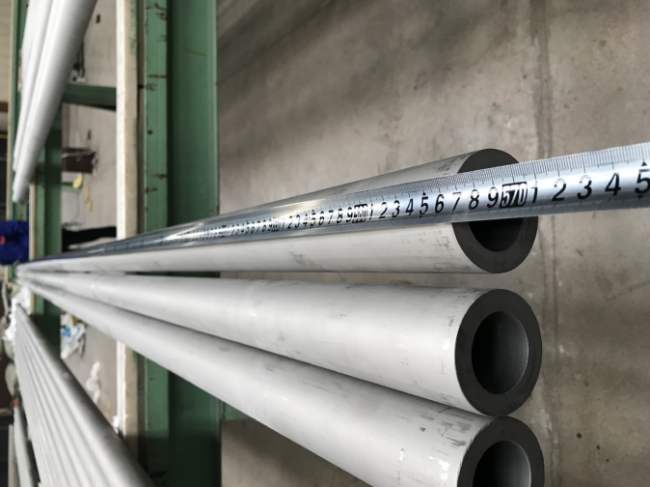

Stainless Steel EN10216-5 1.4841 Seamless Boiler Tube
EN10216-5 1.4841 Stainless Steel Seamless Tube Boiler Tube
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
Standard: EN 10216-5
Equivalent Standards: DIN 17458, GOST 9941-81, GOST 9940-81, ASME SA789, ASTM A789, ASTM A790, ASME SA790, DIN 17456, BS 3605-1
Material: X6CrNiTi18-10, 1.4541
Equivalent Material: 12Ch18N10T, TP321, UNS S32100
The production of a Hydraulic tube A269/A213 aw EN 10216-5 is closely monitored and controlled because of the quality. Directly available as all seamless tubes. Each Hydraulic tube A269/A213 aw EN 10216-5 is available in a pickled, polished and bright annealed version.
Outside diameter and Tolerance
| Hot rolled | Outside Diameter, mm | Tolerance |
| 30≤OD≤219.1 | D2, ±1% or ±0.5mm | |
| 219.1＜OD≤610 | D1, ±1.5% or ±0.75mm | |
| Cold Drawn | Outside Diameter, mm | Tolerance |
| OD≤219.1 | D3, ±0.75% or ±0.3mm | |
| OD≤219.1 | D4, ±0.5% or ±0.1mm |
Wall Thickness and Tolerance
| Hot rolled | Wall Thickness, mm | Tolerance |
| 30≤OD≤219.1, WT≤0.01*OD and WT≤4 | T1, ±15% or ±0.6mm | |
| 30≤OD≤219.1 | T2, ±12.5% or ±0.4mm | |
| 219.1＜OD≤610, WT≤0.05*OD | -1.5 | |
| 219.1＜OD≤610, 0.05*OD＜WT≤0.09*OD | T1, ±15% or ±0.6mm | |
| 219.1＜OD≤610, WT>0.09*OD | T2, ±12.5% or ±0.4mm | |
| Cold Drawn | Wall Thickness, mm | Tolerance |
| OD≤219.1 | T3, ±10% or ±0.2mm | |
| OD≤219.1 | T4, ±7.5% or ±0.15mm |
EN10216-5 Chemical Composition
| C, % | Si, % | Mn, % | P, % | S, % | Cr, % | Ni, % | Ti, % |
| 0.08 max | 1.00 max | 2.00 max | 0.04 max | 0.015 max | 17.0-19.0 | 9.0-12.0 | 5*C-0.7 |
EN10216-5 Mechanical Properties
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % |
| 500-730 | 200 min | 35 min |
Application
- boiler water tube
- smoke tube
- superheater tube
- air preheater tube
- produce pipeline
- container
- equipment
- pipe fittings
- numerous others
