ASTM B366 UNS N06625 Inconel 625 Pipe Fittings
Price:
NEGOTIABLE
MOQ:
1
Delivery Time:
20-80
Brand:
YUHONG
Product Description

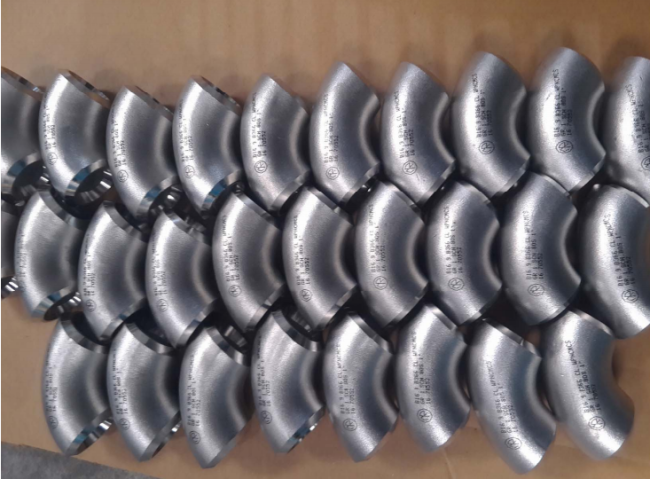

ASTM B366 UNS N06625 Inconel 625 Nickel Alloy Steel Pipe Fittings
We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Inconel 625 Specification
| Inconel 625 Pipe Fittings Specification | |
| Specifications | ASTM B366, ASME SB366 |
| Inconel 625 Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Inconel 625 Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Inconel 625 Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Inconel 625 Buttweld fittings Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| ASTM B366 FittingsType | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Inconel 625 Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. |
| Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO | |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Inconel 625 Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Key markets and industries for Alloy 625 Pipe Fittings | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Application | Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc |
| Schedule 10 fittings are an economical alternative for lower-pressure applications. | |
| Schedule 40 fittings have a thicker wall for higher-pressure applications. | |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Product Features:
- Corrosion resistant
- Accurate dimensions
- Can sustain high pressure & temperature load
- Rust proof finish
- Smooth transition from flange thickness to pipe
- Ensure excellent stress distribution
Inconel 625 Chemical Composition
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min. | 58 | 20 | 8 | 3.15 | |||||||||
| Max. | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Physical Properteis
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350℃ |
Inconel 625 Equivalent Grades
| Equivalent Grades for Inconel 625 Fittings | |||||||
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NC22DNB4M |
Application :
- Paper & Pulp Companies
- High Pressure Applications
- Oil and Gas Industry
- Chemical Refinery
- Pipeline
- High Temperature Application
- Water Pipe Line
- Nuclear Power Plants
- Food Processing and Dairy Industries
- Boiler & Heat Exchangers
