ASTM A240 TP904L SS904L Stainless Steel Plate
ASTM A240 TP904L SS904L Stainless Steel Plate, Sheet and Coils
We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
ASTM A240 TP904L Stainless Steel Plate Specification
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
ASTM A240 TP904L Stainless Steel Plate Chemical Composition
| Element | SS 904L |
| C | 0.020 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 19 – 23 |
| Ni | 23 – 28 |
| Mo | 4 – 5 |
| Cu | 1 – 2 |
ASTM A240 TP904L Stainless Steel Plate Mechanical Properties
| Element | SS 904L |
| Density | 7.95 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 71000 , MPa – 490 |
| Yield Strength (0.2%Offset) | Psi – 32000 , MPa – 220 |
| Elongation | 35% |
ASTM A240 TP904L Stainless Steel Plate Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
ASTM A240 TP904L Stainless Steel Plate Test Certificates
- EN 10204/3.1B,
- Raw Materials Certificate
- 100% Radiography Test Report
- Third Party Inspection Report, etc
Material Testing:
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis

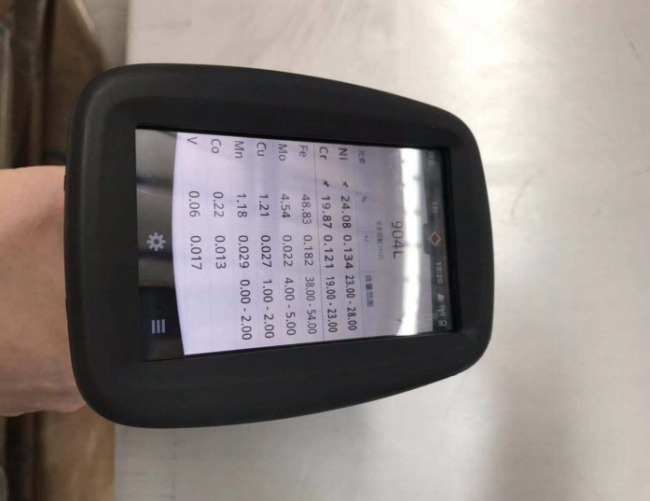

- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
