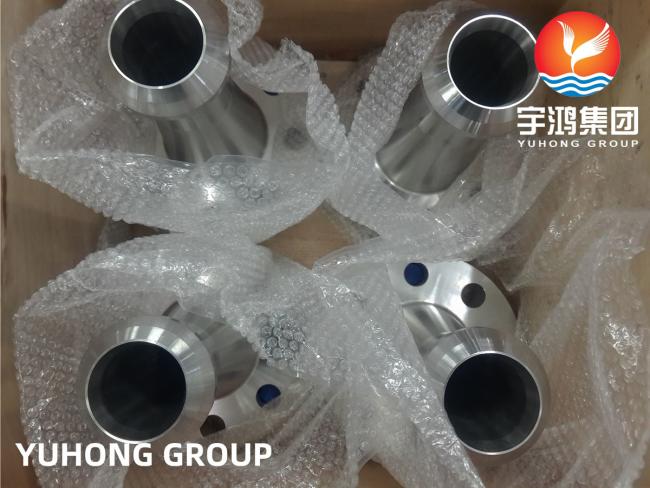

B16.5 ASTM B564 Inconel 625 / UNS N06625 / DIN 2.4856 Nickel Alloy Flangeolet
ASTM B564 Inconel 625 / UNS N06625 / DIN 2.4856 Nickel Alloy Steel Flangeolet
A flangeolet is a type of branch connection fitting used in piping systems. It is designed to provide a 90-degree branch connection from a larger pipe to a smaller pipe or a vessel. The flangeolet has a flanged end that can be bolted to the main pipe or vessel, and a welded or threaded connection for attaching the smaller pipe or branch. Flangeolets are typically made from forging materials such as carbon steel, stainless steel, or alloy steel. They are manufactured to various industry standards such as ASME B16.11, MSS SP-97, or API 6A.
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10max | 0.50 max | 0.50 max | 0.015max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
More Grade And Standard Flangeolet
Flangeolets offer several advantages, including reduced overall weight and size compared to traditional branch connection fittings such as tees or weldolets. They also provide a smooth flow path, minimizing pressure drop and turbulence.
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Grade : 2024, 6061, 6063, 6101, 7075.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Grade : F42/46/52/56/60/65/70
Grade : F1/F5/F9/F11/F22/F91
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
• Nickel 200 UNS N02200 • Nickel 201 UNS N02201 • Monel 400 UNS N04400
• Monel K500 UNS N05500 • Inconel K600 UNS N06600 • Inconel 601 UNS N06601
• Inconel 625 UNS N06625 • Inconel 800 UNS N08800 • Inconel 800H UNS N08810
• Inconel 825 UNS N08825 • Hastelloy C276 UNS N10276 • Alloy 20 UNS N08020
Applications
Flangeolets are commonly used in piping systems where a smaller pipe or branch needs to be connected to a larger pipe or vessel. They are often used in industries such as oil and gas, petrochemical, chemical, and power generation.
- 1. Aircraft ducting systems
- 2. Aerospace
- 3. Jet engine exhaust systems
- 4. Engine thrust-reverser systems
- 5. Specialized seawater equipment
- 6. Chemical process equipment
