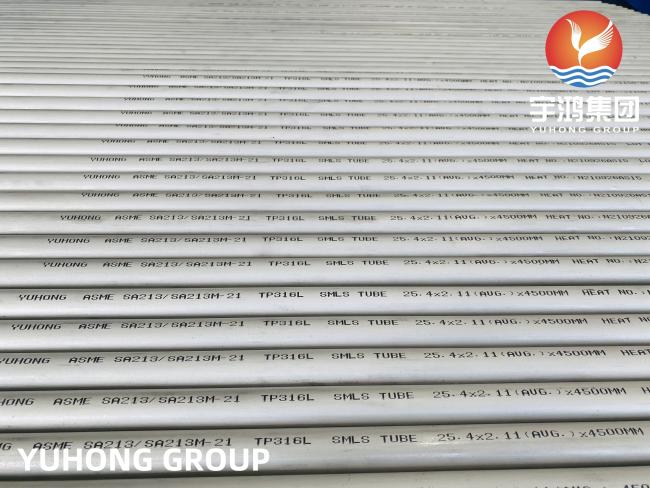

ASME SA213 TP316/316L 1.4401/1.4404 Stainless Steel Seamless Heat Exchanger Tube
ASME SA213 TP316/316L 1.4401/1.4404 Stainless Steel Seamless Heat Exchanger Tube
Overview:
TP316/316L Seamless Tube is a type of austenitic stainless steel tubing that is commonly used in various high-performance applications such as chemical and petrochemical processing, pharmaceutical production, and medical equipment manufacturing. The TP316/316L grade of stainless steel is highly resistant to corrosion and is also known for its excellent mechanical and chemical properties.
These seamless tubes are produced by drawing a solid stainless steel billet through a piercing rod to create a hollow tube with consistent wall thickness and smooth interior surface. The use of seamless tube construction ensures high structural integrity and stability, making it ideal for use in high-pressure applications.
The TP316/316L Seamless Tubes are highly resistant to corrosion and can be used in aggressive environments with temperatures up to 1000℃. They are also extremely resistant to pitting, crevice, and stress corrosion cracking. This makes them ideal for use in chemical processing, marine applications, and oil and gas production.
These tubes are also easy to fabricate and can be welded, bent, and formed into different shapes and sizes without compromising their strength and durability. Additionally, the TP316/316L stainless steel grade has low carbon content, which ensures better weldability and minimizes the risk of intergranular corrosion.
The tubes come in various sizes and thicknesses and are produced according to various international standards such as ASTM, ASME, and EN standards. Post-production heat treatment ensures the final product has the required mechanical and chemical properties.
Specification:
| Specification | ASTM A213 & Its equivalent ASME, DIN & EN Standard. |
| Grades | TP316/316L; 1.4401/1.4404 |
| Type | U-bend & Straight seamless tube |
| Outer Diameter | 1/4'' to 2'' or custom size |
| Wall Thickness | BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10 |
| Length | Upto 6 meters, custom cut lengths |
| Delivery Condition | Solution Annealed & Pickled/Bright Annealed |
| Ends | Plain End, Beveled End |
| Other Testing | Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc. |
| Dimension | All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Packing | Plywood case/Woven bag in bundle |
Chemical Composition:
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP316 | S31600 | 0.08 max | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
| TP316L | S31603 | 0.035 max | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
Mechanical Properties:
| Grade | Tensile Strength, min, ksi (MPa) | Yield Strength, | Elongation in 2 in. | Hardness | Solutioning Temperature, | |
| Rockwell | Brinell/Vickers | |||||
| TP316 | 75(515) | 30(205) | 35 | 90HRB | 192HBW/200HV | 1900(1040) |
| TP316L | 70(485) | 25(170) | 35 | 90HRB | 192HBW/200HV | 1900(1040) |
Applications:
1.Off-Shore Oil Drilling Companies
2.Power Generation
3.Petrochemicals
4.Gas Processing
5.Specialty Chemicals
6.Pharmaceuticals
7.Pharmaceutical Equipment
8.Chemical Equipment
9.Sea Water Equipment
10.Heat Exchangers
11.Condensers
12.Pulp and Paper Industry
