ASTM A182 F316L Stainless Steel Large Diameter Welded Spectacle Blind Flange
ASTM A182 F316L Stainless Steel Large Diameter Welded Spectacle Blind Flange
We are one of the largest suppliers of engineered piping products in China. Our products include steel pipes/pipes, fittings and flanges. After more than 20 years of development, we have accumulated a large number of customers all over the world, and Yuhong products have also won unanimous praise from customers.
Yuhong Group has been operating seamless welded pipes and tubes of austenitic stainless steel, super duplex stainless steel, nickel alloy steel (Hastelloy, Monel, Inconel, Inconel) for more than 25 years. Sales of steel pipes, pipes, flanges and accessories.
Our customers have covered more than 45 countries including Italy, Britain, Germany, the United States, Canada, Chile, Colombia, Saudi Arabia, South Korea, Singapore, Australia, Poland, France, etc.
Our group branches and factories have passed:
ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.

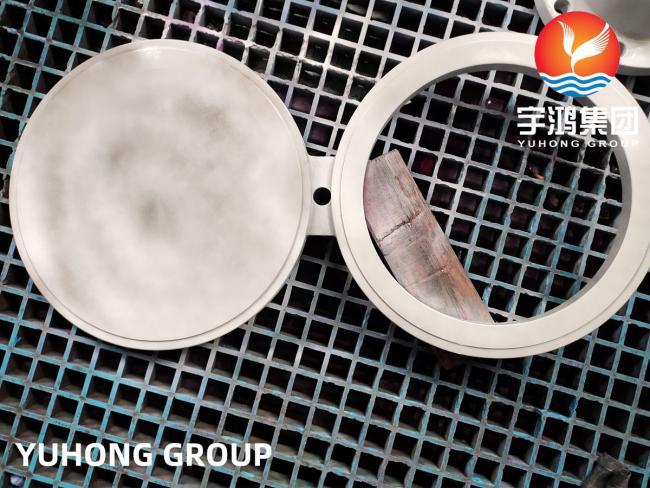

Spectacle Blind is essentially a simple valve. It is installed in the line between the two flanges and bolted in place. One side of the spectacle curtain is open (clapboard), while the other side of the spectacle curtain is blank (blind or spade).
To go from open to closed, except the pivot bolt is removed and the eyeglass shade is rotated on its center hole, so the blind side is between the flanges. Then install and tighten the bolts. The side hanging out of the pipe is a clear indication of whether the pipe is open or closed.
It is typically used for maintenance when a section of pipeline or equipment needs to be isolated. Because it's a semi-permanent isolation, it's very e, and ety is often the mindset behind using glasses blind in maintenance operations. Compared to valves, they are cheap and strong.
1. Full Specification for Flange
| Specifications | Stainless Steel 316L Flanges |
| ASME B16.5 Stainless Steel 316L Flanges size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Stainless Steel 316L Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Stainless Steel 316L Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Stainless Steel 316L Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Stainless Steel 316L Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Stainless Steel 316L Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Stainless Steel 316L Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Stainless Steel 316L Pipe Flanges Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Production technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Most common types of Stainless Steel 316L Flanges | Lap Joint Ring Flange (LJRF), Stainless Steel 316L Flanges |
| Socket Weld Ring Flange (SWRF), Stainless Steel 316L Flanges | |
| Slip-On Ring Flange (SORF), Stainless Steel 316L Flanges | |
| Blind Ring Flange (BLRF), Stainless Steel 316L Flanges | |
| Threaded Ring Flange, Stainless Steel 316L Flanges | |
| Ring Type Joint Flange (RTJF), Stainless Steel 316L Flanges | |
| Weld Neck Ring Flange (WNRF), Stainless Steel 316L Flanges | |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Stainless Steel 316L Flanges Standard | ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, |
| BS Flange, EN Flange, API 6A Flange etc | |
| B.S: BS4504 , BS3293, BS1560, BS10 | |
| AS 2129: Table D; Table E; Table H | |
| ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings | |
| ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 | |
| ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 | |
| American standard (ANSI) | |
| German (DIN) | |
| British standard (BS) | |
| Any other specilised flanges | |
| DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 | |
| The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 | |
| Key markets and industries for Stainless Steel 316L Flanges | Nuclear power (mostly seamless). |
| Petrochemicals and acids. | |
| Bitumen upgraders. | |
| Heavy oil refineries. | |
| Stainless Steel 316L Flanges Application | To Connect Pipe & Tubes in Petroleum, Power, Gas, Metallurgy, Shipbuilding Construction, Chemical etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
2. Material:
| Ferritic-Austenitic Stainless Steels | ||||||||||||
| Composition, % | ||||||||||||
| Grade/Identification Symbol |
UNS Designation |
Carbon | Manganese | Phosphorus | Sulfur | Silicon | Nickel | Chromium | Molybdenum | Columbium | Titanium | Other Elements |
| F 304 | S30400 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 8.0-11.0 | 18.0-20.0 | - | - | - | N 0.10 |
| F 304L | S30403 | 0.030 | 2.00 | 0.045 | 0.020 | 1.00 | 8.0-11.0 | 18.0-20.0 | - | - | - | N 0.10 |
| F 310 | S31000 | 0.25 | 2.00 | 0.045 | 0.030 | 1.00 | 19.0–22.0 | 24.0-26.0 | - | - | - |
- |
| F 316 | S31600 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 | - | - | N 0.10-0.16 |
| F 316L | S31603 | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 10.0-15.0 | 16.0-18.0 | 2.00-3.00 | - | - |
N 0.10 |
