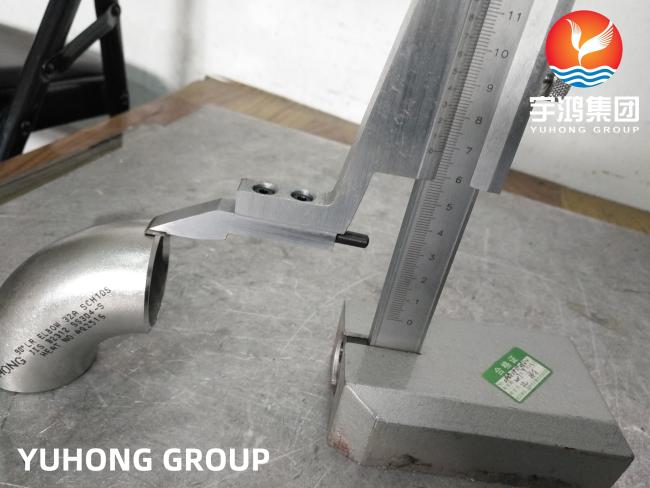

JIS B2312 SUS 304 Elbow Japanese Standard Stainless Steel Buttweld Fitting

Overview:

JIS B2312 is a Japanese Industrial Standard for steel pipe fittings, including elbows, tees, couplings, and more. The SUS304 elbow refers to an elbow fitting made of SUS304 stainless steel material.

SUS304 stainless steel is commonly used in a variety of industries because of its excellent resistance to corrosion and oxidation, as well as its durability. The JIS B2312 SUS304 elbow is designed to change the direction of fluid flow in a piping system, ensuring smooth operation of the system.

The JIS B2312 SUS304 elbow is manufactured to meet the standards set by JIS, which ensure that the fitting has appropriate dimensions, pressure ratings, and material properties. These fittings come in various sizes to accommodate different pipe diameters and can be used for both high and low-temperature applications.

Specification:

Chemical Composition:

Mechanical Properties:


Dimension:

Nominal Size		Outside Diameter at Bevel (mm)	Center to End (mm)
			90° Elbow		45° Elbow
DN	NPS	O.D.	A		B
			LR	SR	LR
15	1/2	21.7	38.1	...	15.8
20	3/4	27.2	38.1	...	15.8
25	1	34.0	38.1	25.4	15.8
32	1 1/4	42.7	47.6	31.8	19.7
40	1 1/2	48.6	57.2	38.1	23.7
50	2	60.5	76.2	50.8	31.6
65	2 1/2	76.3	95.3	63.5	39.5
80	3	89.1	114.3	76.2	47.3
90	3 1/2	101.6	133.4	88.9	55.3
100	4	114.3	152.4	101.6	63.1
125	5	139.8	190.5	127.0	78.9
150	6	165.2	228.6	152.4	94.7
200	8	216.3	304.8	203.2	126.3
250	10	267.4	381.0	254.0	157.8
300	12	318.5	457.2	304.8	189.4
350	14	355.6	533.4	355.6	220.9
400	16	406.4	609.6	406.4	252.5
450	18	457.0	685.8	457.2	284.1
500	20	508.0	762.0	508.0	315.6
550	22	558.8	838.2	558.8	347.2
600	24	609.6	914.4	609.6	378.7
650	26	660.4	990.6	660.4	410.3
Notes: 1) Besides these, GB/T 10752, SH 3408, SH 3409, HG/T 21635, HG/T 21631, SY/T 0510, DL/T 695, EN 10253 etc.are also applied. 2) The elbow with NPS over 26 shall be made subject to the sizes agreed by purchaser and manufacturer.
