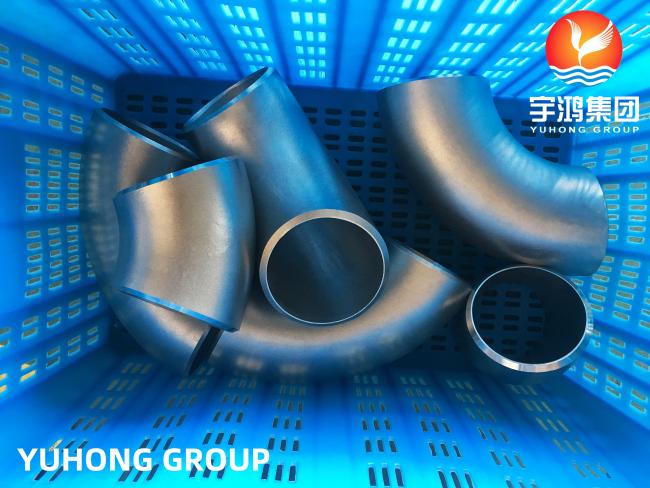

254 SMO ELBOW HIGH-ALLOYED STAINLESS STEEL FITTING ASTM A403 S31254
254 SMO ELBOW HIGH-ALLOYED STAINLESS STEEL FITTING ASTM A403 S31254
Overview
254 SMO, also known as UNS S31254 or 6% molybdenum super austenitic stainless steel, is a high-alloyed stainless steel that offers excellent resistance to corrosion, especially in aggressive environments. When it comes to 254 SMO elbows, they are pipe fittings that provide changes in direction for piping systems while maintaining the exceptional corrosion resistance and strength of the alloy.
It is important to note that the advantages of 254 SMO elbows may vary depending on the specific application and operating conditions. It is recommended to consult with engineers, manufacturers, or industry professionals to evaluate the specific advantages and suitability of 254 SMO elbows for your particular project requirements.
Key points about 254 SMO elbows:
Corrosion Resistance: 254 SMO elbows are highly resistant to corrosion in various environments, including seawater, chloride-containing solutions, acids (such as sulfuric acid and phosphoric acid), and other aggressive media. This makes them suitable for use in industries like offshore, chemical processing, and desalination.
Strength and Durability: 254 SMO elbows offer high strength and durability, making them suitable for demanding applications where resistance to stress corrosion cracking and pitting corrosion is essential.
Fabrication and Weldability: 254 SMO elbows can be easily fabricated and welded, allowing for flexibility and ease of installation in piping systems. However, it is important to follow proper welding procedures and use appropriate filler materials to maintain the corrosion resistance properties of the alloy.
Applications: 254 SMO elbows are commonly used in industries where corrosion resistance is crucial, such as offshore oil and gas platforms, chemical processing plants, desalination plants, pulp and paper industry, and pharmaceutical industry. They are employed in piping systems, heat exchangers, condensers, and other equipment that require changes in direction while maintaining the integrity of the system
Chemical Composition
| S31254 | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr |
| 17.5 – 18.5 | 0.02 max | 6 – 6.5 | 1 max | 0.8 max | – | 0.5 – 1 | 0.01 max | 0.03 max | 19.5 – 20.5 |
Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 300 | 650 | 35 % |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | SIS | GOST |
| SMO 254 | S31254 | 1.4547 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 | – | 2378 | – |
Application:
- Offshore Oil and Gas
- Chemical Processing
- Desalination
- Pulp and Paper Industry
- Pharmaceutical Industry
- Heat Exchangers and Condensers
