ANSI B16.9 ASTM A403 WP317L Stainless Steel Buttweld Pipe Fitting Reducer

Price Negotiable

Price: Negotiable

MOQ: 1PC

Delivery Time: 7 DAYS

Brand: YUHONG

Product Description

ANSI / ASME B16.9 Buttweld Pipe Fitting, ASTM A403 WP317L Stainless Steel Reducer

Stainless steel 317L contains low carbon and high alloy. It is specifically designed to be highly resistant to corrosion and oxidation in high-temperature environments. Reducer is a type of pipe fitting that is used to connect two pipes with different diameters. It is designed to reduce the size of the pipe and facilitate a smooth flow of fluids or substances, which is specifically used in applications where corrosion resistance and high-temperature strength are required.

EQUIVALENT GRADES FOR STAINLESS STEEL WP317L REDUCERS

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 317L	1.4438	S31703	SUS 317L	X2CrNiMo18-15-4

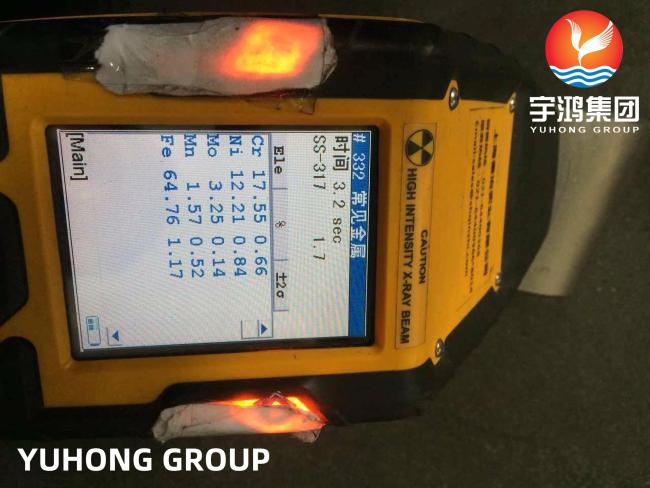

STAINLESS STEEL 317L REDUCERS CHEMICAL COMPOSITION

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 317L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 - 20.00	3.00 - 4.00	11.00 - 15.00	57.89 min

MECHANICAL PROPERTIES OF STAINLESS STEEL WP317L REDUCERS

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Specification Of Stainless Steel 317L Buttweld Fittings

Specifications	ASTM A403 / ASME SA403
Pipe Fittings size	Seamless Stainless Steel Butt Weld Fittings: 1/2" - 10" Welded Stainless Steel Butt Weld Fittings: 1/2" - 48"
Pipe Fittings Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pipe Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Pipe fittings Types	Seamless / ERW / Welded / Fabricated
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Connection	Welding
Pipe Fittings Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Pipe Fittings Size Range	1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Pipe Fittings Manufacturing process	Push, Press, Forge, Cast, etc.
Buttweld Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Pipe Fittings uses & application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Schedule 10 Stainless Steel 317L fittings are an economical alternative for lower-pressure applications. Schedule 40 Steel 317L fittings have a thicker wall for higher-pressure applications.
