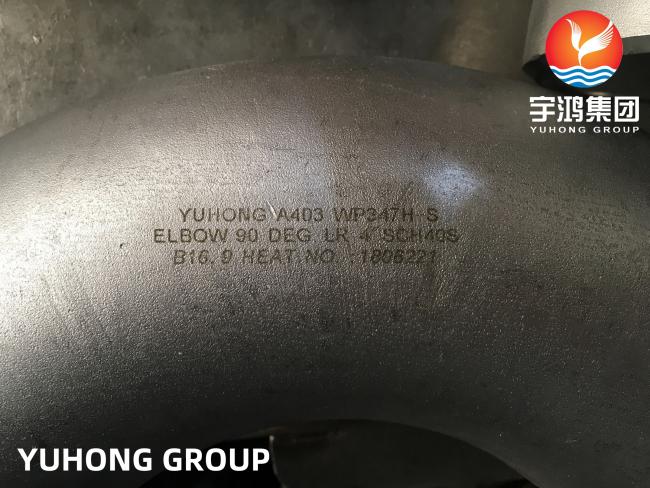

ASTM A403 WP347H-S 90 DEG. LR Elbow Stainless Steel Pipe Fitting High Pressure Butt Weld
ASTM A403 WP 347 fittings are available in a variety of sizes and configurations. Our product range includes pipes, reducers, tees, elbows, and they are also available in a variety of thread types. It is designed to provide leak-free connections suitable for a variety of applications supporting today's major industrial markets. Stainless steel 347 fittings are highly resistant to corrosion and oxidation in man-made and natural environments. It is an iron alloy with at least 10% chromium. A range of fittings including tees, unions, elbows, caps, reducers and more. astm a403 wp 347h is a high carbon version of the alloy. It contributes to improved creep resistance and higher strength at temperatures above 1000°F. 347h stainless steel pipe fittings are tougher than 304 steel. It can be welded using resistance and fusion methods. It can be quenched with water in a temperature range of 1010 to 1193°C. It does not respond to heat treatment, and its hardness and strength can be increased by cold working. Stainless steel 347 elbows are used to change the flow direction. Due to the demand for pipes, it is mainly available in two standard, 90 degree and 45 degree angle.
Stainless Steel 347 Pipe Fittings Specification Schedule
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
Stainless Steel 347 Pipe Fittings Dimension Chart
| Nominal Pipe Size |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
|||
|
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
1/2
|
21.3
|
0.840
|
1 1/2
|
–
|
5/8
|
|
2
|
1 7/8
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
–
|
7/16
|
|
2 1/4
|
1 11/16
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
|
3
|
2 3/16
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
|
3 3/4
|
2 3/4
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
ASTM A403 Wp 347 Pipe Fittings Composition Chart
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC ? 1.10 | 9.00 – 13.00 | 62.74 min |
Equivalent Of ASTM A403 WP347 Pipe Fitting
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
347h stainless steel pipe fittings Mechanical Properties Table
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 347 | 515 | 205 | 40 | 95 | 201 |
