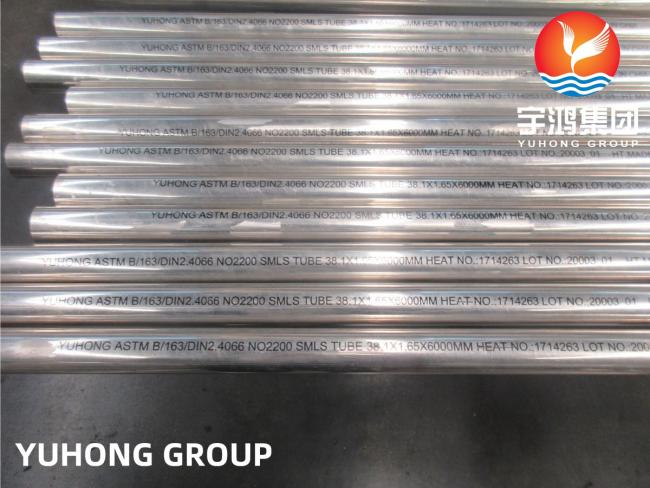

ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger
ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger
Tubes produced from nickel 200 exhaust heat exchanger permits operations such as fabrication with sound welds to be constructed. This is a particularly useful characteristic, especially when the 200 Nickel Heat Exchanger Tube is used for applications which involve the caustic concentration sector. The material for Nickel 200 Sanitary Tube has been used for the transportation of various chemicals as well as in the manufacture of aerospace components.
Designed as per international and national standards, these Nickel 200 Seamless Tubes are offered in customized length sizes and shapes to our esteemed clients.
They have some of the first rate mechanical properties along with an excellent resistance to a lot of corrosive environments.Also referred as UNS N02200, we offer these Nickel Seamless Tubes at best possible rates in the market.
Chemical Properties
| Grade | ASTM B163 Nickel 200 | |
|---|---|---|
| min | max | |
| C | – | 0.15 |
| Mn | – | 0.35 |
| Si | – | 0.1 |
| P | – | – |
| S | – | 0.01 |
| Mg | – | – |
| Ti | – | – |
| Ni | 99.0 | – |
| Cu | – | 0.25 |
| Fe | – | 0.4 |
Mechanical Behaviour
| Grade | ASTM B163 Nickel 200 | |
|---|---|---|
| Tensile Strength (MPa) min | Psi – 67000 , MPa – 462 | |
| Yield Strength 0.2% Proof (MPa) min | Psi – 21500 , MPa – 148 | |
| Elongation (% in 50mm) min | 45% | |
Equivalent Material
| Grade | ASTM B163 Nickel 200 | |
| UNS No | N02200 | |
| Old British | BS | NA 11 |
| En | Ni 99.2 | |
| Euronorm | No | 2.4066 |
| Name | – | |
| AFNOR | N-100M | |
| Japanese JIS | NW 2200 | |
| GOST | НП-2 | |
Pressure Rating Of Alloy 200 Tubing
| Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Applications
-Petrochemical
-Oil Well/oilfield
-Energy Poly Silicon Shipyard/Shipbuilding
-Boiler Heat Exchange
-Environmental Protection
-Nuclear Power
-Chemical Fertilizer
-Energy Equipment
-Oil Refining
